LAZZATI BlueTech 4.0
Hydrostatic Regeneration. Digital Upgrade. Extended Lifetime Accuracy.
Hydrostatic Regeneration. Digital Upgrade. Extended Lifetime Accuracy.
BlueTech4.0 is LAZZATI’s proprietary regeneration program that restores hydrostatic boring and milling machines to factory-level accuracy, rigidity and reliability — integrating the latest digital technologies from the LAZZATECH Evo4.0 ecosystem. It is a certified, repeatable process designed to extend machine lifetime, protect the original investment and deliver long-term production continuity.
Why Regeneration Matters
LAZZATI machines are engineered for long-term performance. Their structural rigidity, mechatronic stability and hydrostatic architecture make regeneration not only possible, but rational.
BlueTech4.0 preserves the intrinsic value of LAZZATI machines:
The original cast-iron structures
Hydrostatic slideways with zero mechanical wear
Precision hand-scraped geometry
Proven mechatronic behaviour over decades
Regeneration becomes a strategic choice: You maintain the integrity of a proven machine while upgrading its digital and operational capabilities.
Precision, rigidity and reliability — the foundation of every LAZZATI machine — are preserved and enhanced through BlueTech4.0.
Lazzati Bluetech4.0
Available Models

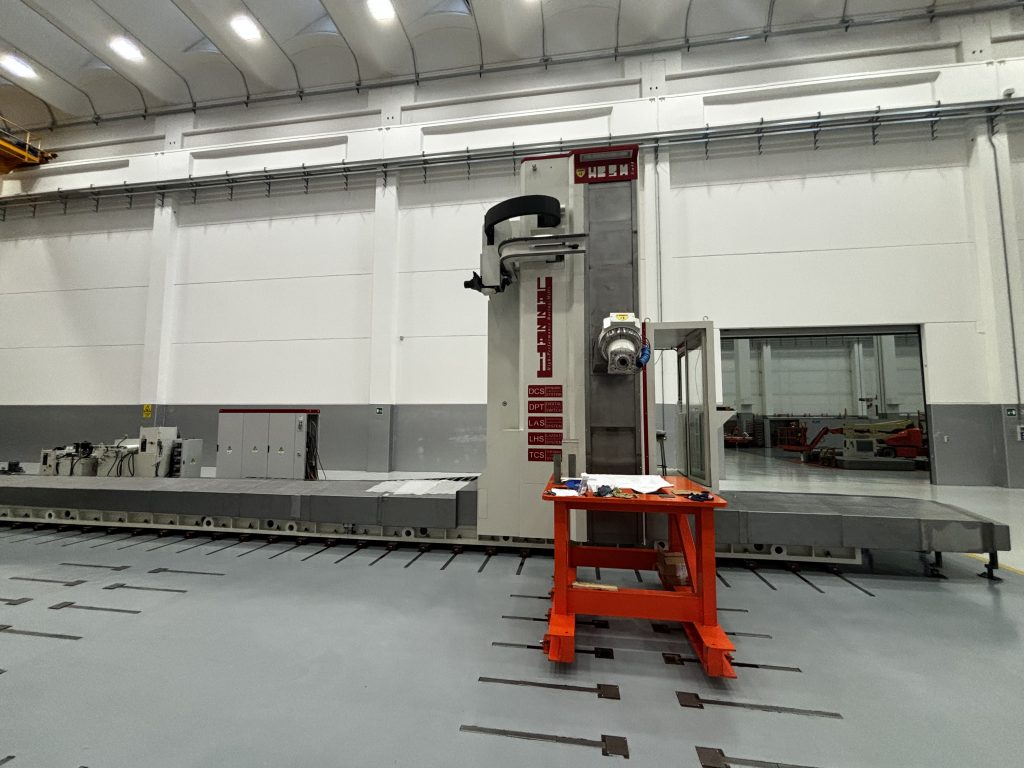

LAZZATI Floor-Type Ram Milling HB5M Evo-BlueTech4.0
Availability: Now on Stock
Condition: LAZZATI BlueTech4.0 Certified 2026
Main Technical Specifications
- Automatic Universal Head 0,001° x 0,001°
- ISO50 – Big Plus
- RPM 5.000 – 2.000 Nm – 75 kW
- X = 13.000 mm
- Y = 3.000 mm
- Z (Ram) = 1.500 mm
- CNC Heidenhain 530
- Coolant 35bar internal/external CNC managed
- Industry 4.0 & 5.0 Ready
- 1 Year Warranty
Included Options:
- OSP – Workpiece Probe Radio
- TC 120 – Automatic Tool Changer 120tools
- Floor Plates mm. 12.000×2.000
- TR 40 Rotary Travelling Table B=2.000×2.500 W=2.000
- Coolant Tank 1.200Lt
Available Options on Request:
- C1 – New CNC Heidenhain 640
- O SR – Tool Presence Probe
The LAZZATI HB 5M Evo-BlueTech4.0 is a regenerated hydrostatic travelling column boring and milling machine developed for heavy-duty precision machining applications requiring rigidity, stability and reliable long-term performance. Available within the LAZZATI BlueTech4.0 program, the machine combines regenerative innovation, technological upgrade and

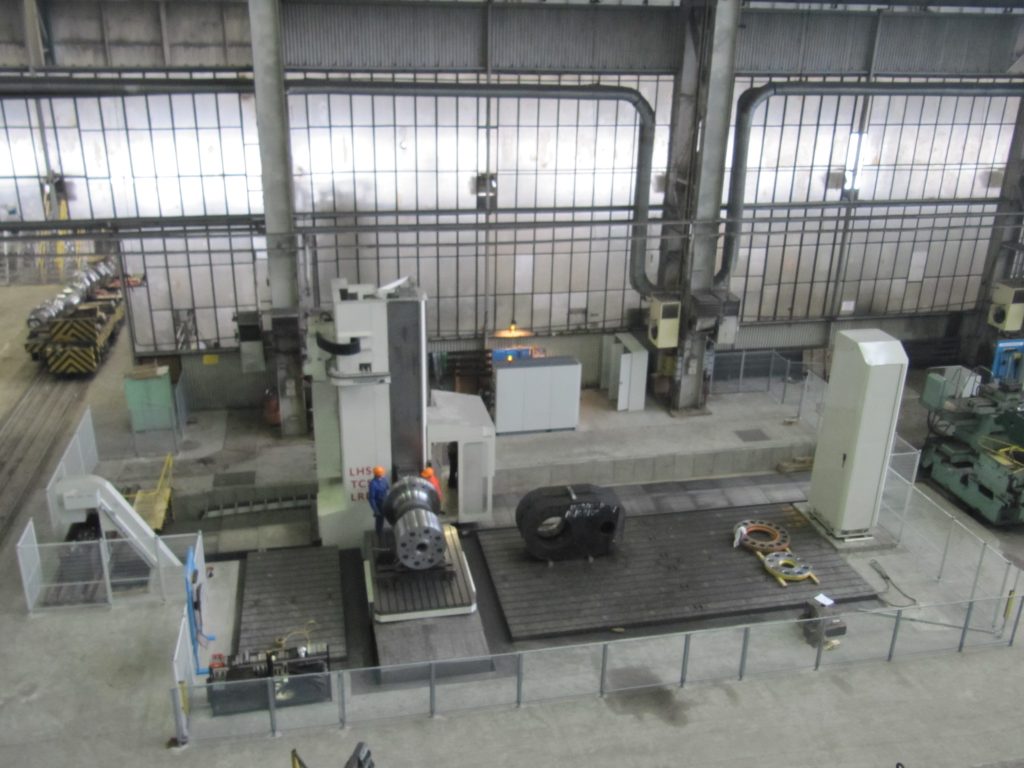

LAZZATI Travelling Column Boring Mill HB 150MM BlueTech4.0
Availability: SOLD OUT
Condition: LAZZATI BlueTech4.0 Certified 2026
Main Technical Specifications
- Boring Spindle 150 mm
- ISO50 – Big Plus
- RPM 3.250 – 3.250 Nm – 75 kW
- X = 14.000 mm
- Y = 3.500 mm
- Z (Ram) = 1.300 mm
- W (Spindle) = 1.100 mm
- CNC Heidenhain 640
- Coolant 35 bar internal/external CNC managed
- Industry 4.0 & 5.0 Ready
- 1 Year Warranty
Included Options:
- A UA 360 – Automatic Universal Head 1° x 1°
- TC 60 – Automatic Tool Changer 60 tools
- Floor Plates mm. 10.000 x 4.000
- TR 40 – Rotary Travelling Table 40ton B = 2.000 x 2.500 W = 2.000
- Coolant Tank 1.200 Lt
Available Options on Request:
- K F – Pick-up Station for automatic Head change
- OSP – Workpiece Probe Radio
- O SR – Tool Presence Probe
The LAZZATI HB 150MM BlueTech4.0 is a regenerated hydrostatic travelling column boring and milling machine developed for heavy-duty precision machining applications.

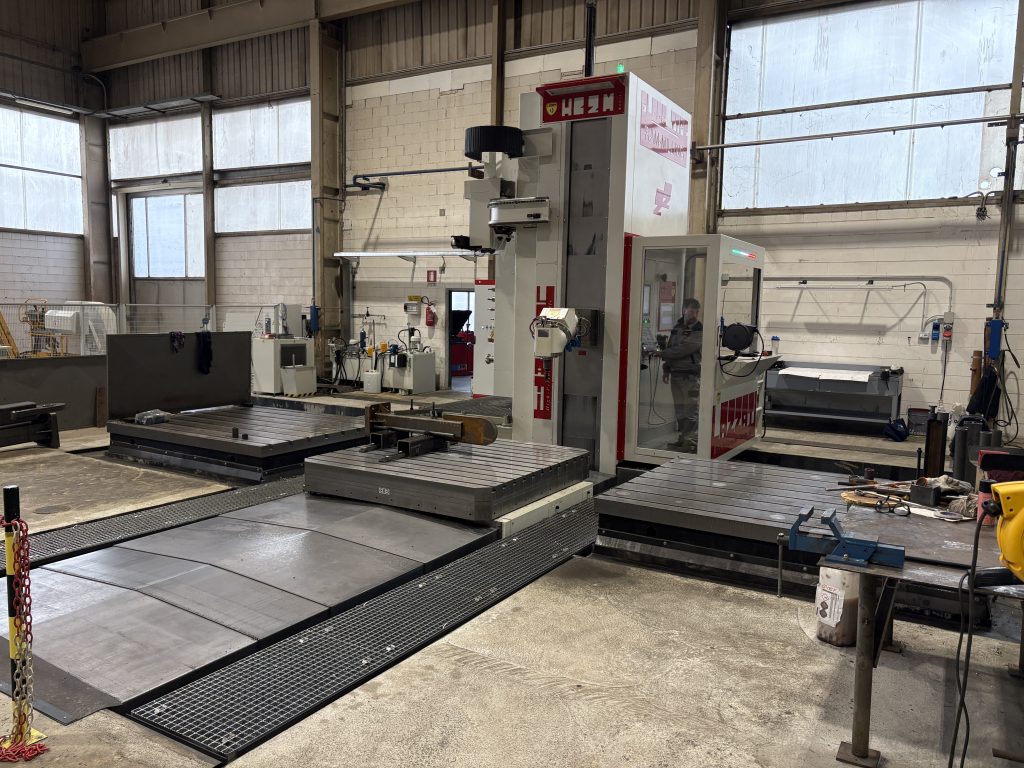

LAZZATI Travelling Column Boring Mill HB 2M BlueTech4.0
Availability: SOLD OUT
Condition: LAZZATI BlueTech4.0 Certified 2026
Main Technical Specifications
- Automatic Universal Head 1° x 1°
- ISO50 – Big Plus
- RPM 3.000 – 1.100Nm – 46kW
- X=8.000mm
- Y=2.300mm
- Z(Ram)=1.200mm
- CNC Heidenhain 640
- Coolant 35bar internal/external CNC managed
- Industry 4.0 & 5.0 Ready
- 1 Year Warranty
Included Options:
- TC 60 – Automatic Tool Changer 60tools
- Floor Plates mm. 4.000×2.000
- TR 40 B=2.000×2.500 W=2.000
- Coolant Tank 1.200Lt
Available Options on Request:
- OSP – Workpiece Probe Radio
- O SR – Tool Presence Probe
The LAZZATI HB 2M BlueTech4.0 is a regenerated hydrostatic travelling column boring and milling machine developed for heavy-duty precision machining applications requiring rigidity, stability and reliable long-term performance. Available within the LAZZATI BlueTech4.0 program, the machine combines regenerative innovation, technological upgrade and factory validation while maintaining the hydrostatic engineering standards of the LAZZATI range.

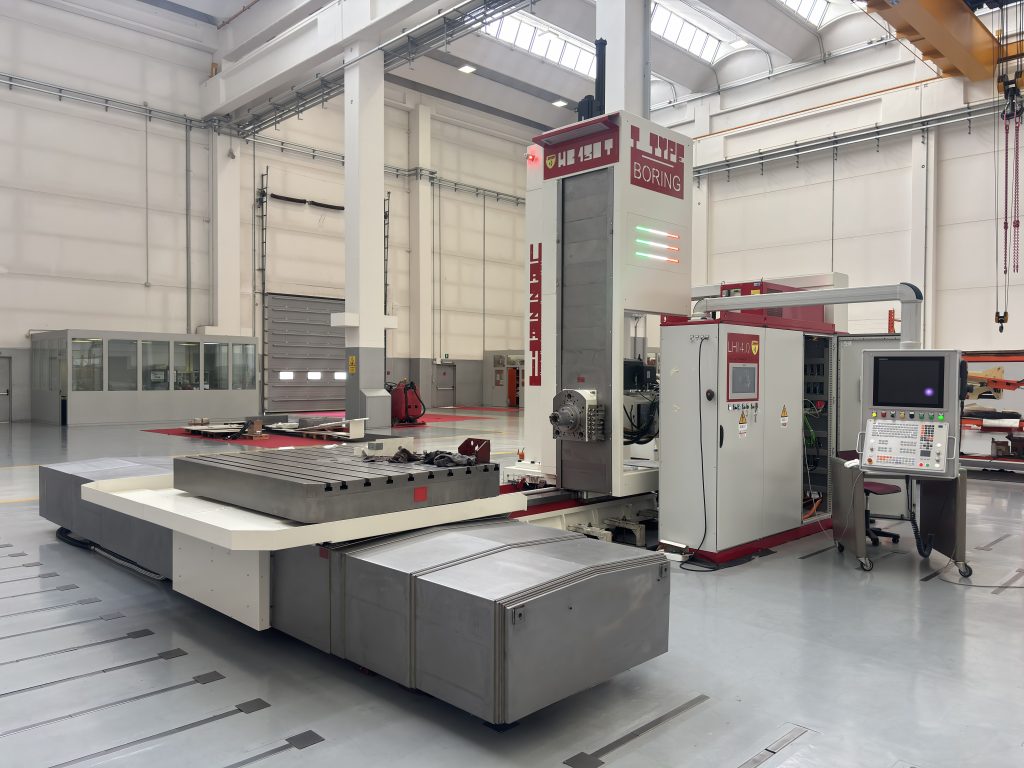

LAZZATI T-Type Boring HB130T BlueTech4.0
Availability: SOLD OUT
Condition: LAZZATI BlueTech4.0 Certified 2025
Main Technical Specifications
- Boring Spindle 130 mm
- ISO50 – Big Plus
- RPM 3.375 – 1.200 Nm – 53 kW
- X = 4.000 mm
- Y = 2.000 mm
- Z (Column) = 1.800 mm
- W (Spindle) = 800 mm
- Rotary Table Max Load 12ton
- Rotary Table Surface B = 1.540 x 2.000 mm
- CNC Heidenhain 640
- Coolant 35 bar internal/external CNC managed
- Industry 4.0 & 5.0 Ready
- 1 Year Warranty
Included Options:
- A UA 360 – Automatic Universal Head 1° x 1°
- Coolant Tank 1.200 Lt
Available Options on Request:
- TW 60 – Automatic Tool Changer 60 tools
- OSP – Workpiece Probe Radio
The LAZZATI HB 130T BlueTech4.0 is a regenerated hydrostatic table type boring and milling machine developed for heavy-duty precision machining applications.
Linea T-Type Ram Milling HB 4T BlueTech 4.0
- AVAILABILITY: SOLD
- LAZZATI HB 4T BlueTech 4.0
CNC Heidenhain TNC 640 NEW
A UA 360 – Automatic Universal Head 1° x 1°
RPM 4.000 – 1.100Nm – 60kW
X=5.000mm
Y=2.500mm
Z(Column)=2.300mm
W(RAM)=1.200mm
Rotary Travelling Table 30Ton
B=2.000×3.000
TW 60 – Automatic Tool Changer 60 tools H+V
LA 20 – High pressure Coolant Internal +External 20bar
Industry 4.0 Ready
Warranty 12 months
Lazzati Bluetech4.0
The BlueTech4.0 Process
Complete disassembly and inspection
Restored geometry
New systems and components
All tubing, cables, pumps, valves, sensors and functional groups are replaced with new components.
Digital upgrade
Installation of:
- Heidenhain TNC 640 CNC
- LHI 5.0 – Lazzati Human Interface
- Integration-ready platform for LIA 1.0, TCS, DCS, LES, L-DAS and LED 5.0
Safety & Compliance
Each machine is certified according to current European directives (CE), with updated guarding, interlocks and diagnostic systems.
The result is a machine that delivers factory-level accuracy and predictable long-term performance — with the advantage of a proven structural core.
LAZZATECH Evo4.0 Integration
BlueTech4.0 incorporates selected technologies from the LAZZATECH Evo4.0 ecosystem to ensure stable precision and consistent operational behaviour.
LHI 5.0 – Human Interface
LIA 1.0 – Intelligent Assistant
TCS – Thermal Control System
DCS - Dynamic Compensation System
LES – LAZZATI Energy Saving System
L-DAS — LAZZATI Dynamic Axis Setup
LED 5.0 — LAZZATI Electric Diagnosis
What You Retain. What You Gain
What you retain
LAZZATI’s cast-iron structural rigidity
Zero-wear hydrostatic architecture
Proven geometric consistency
What you gain
Restored lifetime accuracy
Updated digital control
Full system replacement
Enhanced safety and compliance
Sustained operational continuity
BlueTech4.0 is engineered to extend the productive life of LAZZATI machines in a measurable and verifiable way.
Hydrostatic excellence since 1939 — evolved for tomorrow’s challenges.
Lazzati Bluetech4.0
Investment Grade Regeneration
BlueTech4.0 represents an investment-grade alternative to new machine acquisition, following the same engineering logic applied to LAZZATI’s premium machinery:
Predictable performance
Consistent precision
Reduced operating costs
Simplified maintenance
Lifetime reliability
It maintains the value of the original structure while integrating modern digital capability.
The BlueTech4.0 Range
HB 4T BlueTech4.0
T-Type Ram Milling Machine
HB 2M BlueTech4.0
Floor-Type Ram Milling Machine
HB 150M BlueTech4.0
Floor-Type Ram Boring Machine
Each unit is rebuilt, validated and certified according to LAZZATI standards.
We BOOST Your Profits
BlueTech4.0 supports production continuity, reduces unplanned downtime and extends machine lifetime — lowering operating costs while maintaining accuracy and rigidity.
Market research shows that reliability, advanced technology and comprehensive support are the three decisive factors in machine tool purchases. BlueTech4.0 delivers all three.
BlueTech4.0 extends the value of proven LAZZATI architecture while integrating modern digital intelligence.
Engineered to Last. Built to Perform
BlueTech4.0 regenerates the intrinsic value of LAZZATI machines — restoring their precision and updating their intelligence to support the next production decade.
LAZZATI BlueTech4.0 is the certified regeneration program for hydrostatic boring and milling machines, restoring lifetime accuracy and extending the operational life of Made in Italy machinery. The process includes complete disassembly, geometric restoration, hydrostatic scraping and full system replacement. Digital upgrades are powered by LAZZATECH Evo4.0 technologies such as LHI 5.0, LIA 1.0, TCS, DCS, LES, L-DAS and LED 5.0. With a structural base engineered in 1939 and refined across four generations, LAZZATI machines maintain exceptional rigidity, predictable behaviour and zero mechanical wear — making regeneration a rational investment. BlueTech4.0 enables companies in aerospace, energy, oil & gas, precision engineering, defence and heavy industry to preserve the value of proven machines while integrating modern digital capabilities. The program delivers reduced operating costs, sustained accuracy and lifetime reliability, aligning with LAZZATI’s mission: We BOOST Your Profits. The Hydrostatic Boring Mill. Engineered for continuity. Designed for performance. Certified for extended life.
