Accessories
LAZZATI accessories extend machine capability through a modular approach designed to support flexibility and customization. All accessories are engineered for seamless integration with LAZZATI Evo4.0 machines and full compatibility with hydrostatic architecture. This approach allows machine configurations to evolve over time according to specific production requirements.
Tables
Tables extend the machining capability of LAZZATI Floor-Type machines, enabling controlled workpiece rotation and precise positioning for multi-face operations.
They are designed to support heavy components without compromising structural rigidity or machining accuracy.
Heads
Milling heads extend machining flexibility for complex geometries and multi-face operations. LAZZATI offers a complete range of automatic, manual and special-design heads, engineered for seamless integration with LAZZATI machines and control systems. All solutions are developed to ensure precision, durability and operational continuity during extended machining cycles.
Stores
They support unattended machining cycles and complex multi-tool operations across diverse production requirements. All storage systems are fully integrated with LAZZATI machines and digital control platforms.
Options
They are configured based on specific application requirements and production workflows, and are available across both Floor-Type and T-Type machines to enhance flexibility and productivity.
Tables

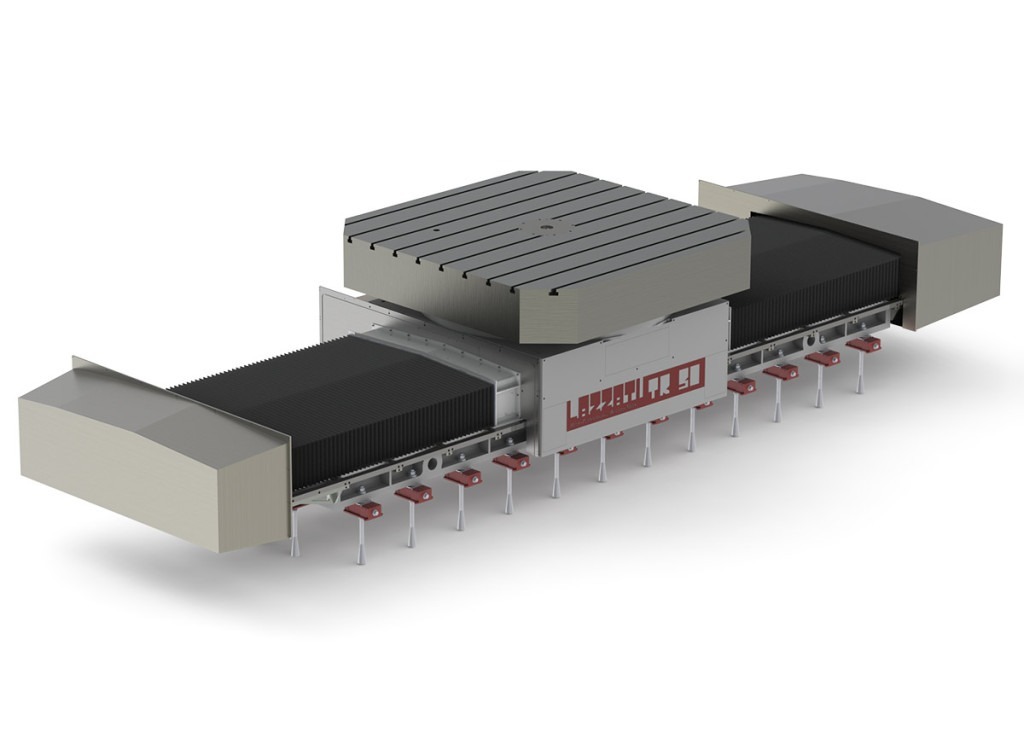

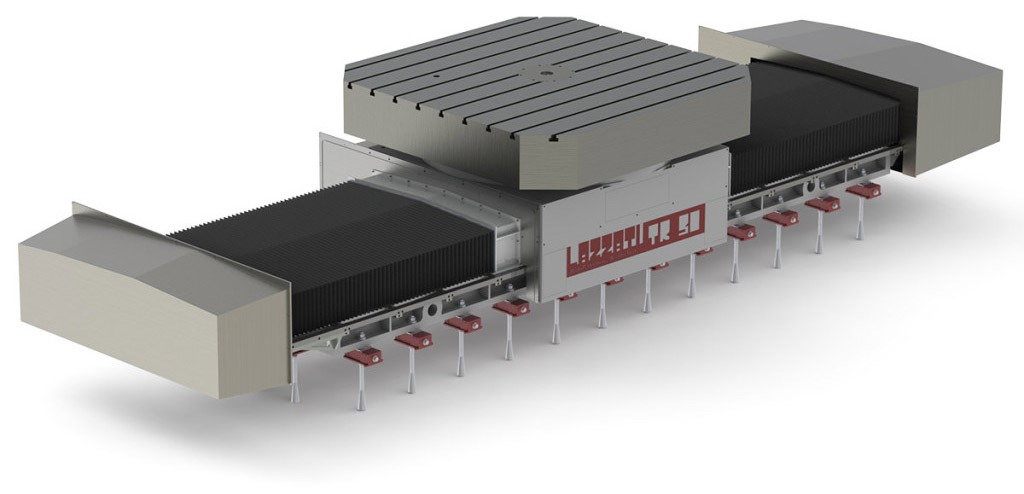

TR – Rotary Travelling Tables
TR rotary travelling tables are fully designed and manufactured by LAZZATI and represent the primary table solution for Floor-Type machines.
They are based on hydrostatic guideways, providing friction-free movement, high rigidity and long-term geometric stability during operation.
The combination of rotational movement and longitudinal linear travel (V axis) allows complete multi-face machining without repositioning the workpiece.
Integration with LAZZATI control systems ensures precise positioning and coordinated motion throughout complex machining cycles.
These tables are specifically engineered for large and heavy components, maintaining stability under high loads.
Available Models
TR 15
Table Surface Min: 1.600 x 2.000 mm.
Table Surface Max: 1.800 x 2.400 mm.
Travel V: 1.500 ÷ 4.000 mm.
Max Load: 15 Ton.
TR 25
Table Surface Min: 1.600 x 2.000 mm.
Table Surface Max: 2.000 x 3.000 mm.
Travel V: 1.500 ÷ 5.000 mm.
Max Load: 25 Ton.
TR 40
Table Surface Min: 1.650 x 2.000 mm.
Table Surface Max: 2.500 x 3.000 mm.
Travel V: 1.500 ÷ 6.000 mm.
Max Load: 40 Ton.
TR 60
Table Surface Min: 2.500 x 2.500 mm.
Table Surface Max: 3.000 x 3.500 mm.
Travel V: 1.500 ÷ 7.000 mm.
Max Load: 60 Ton.
TR 80
Table Surface Min: 2.500 x 2.500 mm.
Table Surface Max: 3.500 x 4.000 mm.
Travel V: 1.500 ÷ 7.000 mm.
Max Load: 80 Ton.
TR 120
Table Surface Min: 3.500 x 3.500 mm.
Table Surface Max: 4.000 x 5.000 mm.
Travel V: 1.500 ÷ 7.000 mm.
Max Load: 120 Ton.
T – Rotary Tables
T rotary tables are available on request and can be configured for horizontal or vertical positioning, depending on application requirements.
Available range
From 500 × 500 mm / Ø500 mm — Load: H = 2 ton / V = 1 ton
To 2.000 × 2.000 mm / Ø2.000 mm — Load: H = 20 ton / V = 10 ton
Heads
Real-time 3D monitoring and management system for LAZZATI universal heads, integrated with external simulation software
Universal Milling Heads
Automatic universal milling heads designed for complex angular positioning and multi-axis machining operations.
Fully designed and manufactured by LAZZATI, these heads enable precise indexing and stable torque transmission, supporting demanding machining conditions without compromising accuracy.
Models

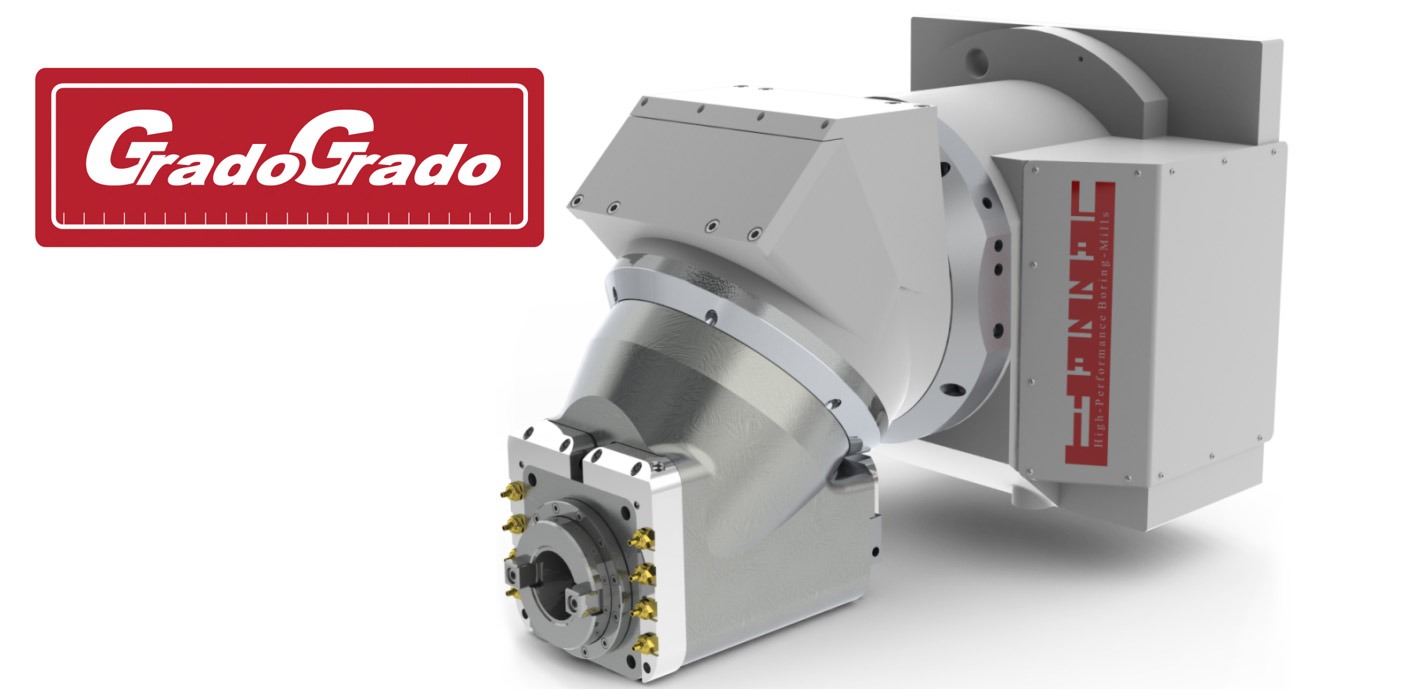

A UA 360 “GradoGrado” — indexing 1° × 1°, torque 1.500 Nm
A UA 360.000 “Millesimo” — indexing 0,001° × 0,001°, torque 1.500 Nm

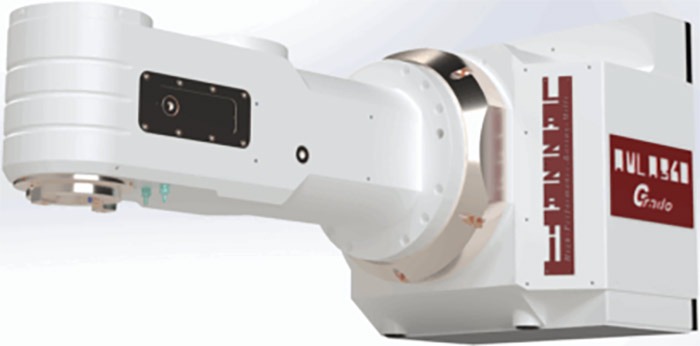

Automatic Vertical Milling Heads
Automatic vertical milling heads developed by LAZZATI for a wide range of applications requiring different reach and rigidity levels.
These heads provide precise angular positioning and controlled torque delivery, maintaining accuracy and stability during extended machining operations.
Models
A VA 360 “Grado” — indexing 1°, torque 1.500 Nm
A VHA 360 “HeavyGrado” — indexing 1°, torque 2.500 Nm
A VLA 360 — indexing 1°, length 1.000 mm, torque 600 Nm
A VLXA — indexing 1°, length 1.300 mm, torque 200 Nm
A VLA ISO40 — indexing 1°, ISO40, torque 100 Nm

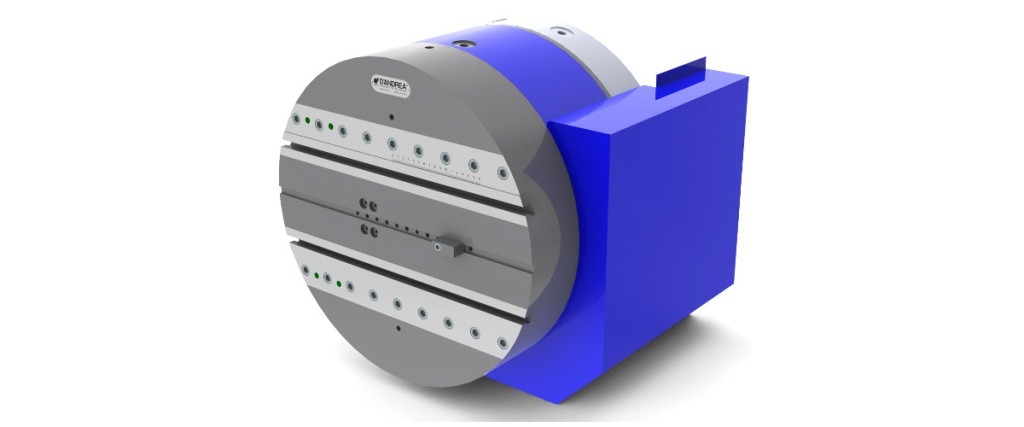

Facing Heads
Facing heads supplied by D’Andrea and integrated by LAZZATI for specific facing and boring operations.
These solutions are selected for compatibility with LAZZATI machines and integrated into the overall machine configuration for dedicated applications.
Models
A FH — D’Andrea UTronic 5series
A FHL — D’Andrea UTronic, extended length 1.000 mm
A FP — D’Andrea UTronic 8series
5 Axis Heads
High-performance heads developed by LAZZATI for continuous 5-axis machining applications.
These heads support simultaneous multi-axis movements and are designed for complex machining paths requiring controlled power and precise kinematics.
Models
A TC Mechanical — torque 1.200 Nm, speed 2.500 RPM
A TCE Electrospindle — torque 500 Nm, speed 10.000 RPM
Spindle Supports
Spindle supports designed by LAZZATI for extended boring and milling operations.
They increase machining reach while maintaining alignment, rigidity and operational stability.
Models
A SC — length 300 mm
A SCL — length 600 mm
A SCLX — length 800 mm
Manual Heads
Manual heads developed by LAZZATI for specific machining operations requiring fixed-angle positioning.
These solutions provide a robust and reliable option for dedicated applications.
Models
A UM Universal — torque 1.000 Nm
A VM ISO50 — torque 200 Nm, length on request
A VM ISO40 — torque 100 Nm, length on request
Stores
Automatic Stores for CNC Boring and Milling Machines
Automatic Tool Changers
Designed to maximise operational continuity and reduce manual interventions, automatic tool changers allow for high-capacity storage and rapid tool exchange. They support complex part programs, multi-phase machining, and are fully compatible with LAZZATI’s modular machine architecture.
Stores Models
TC – On Board (Column Side positioning)
- Tool Capacity: 60 / 120 / 180 pockets
- Positioning: Column Side
- Chain Pitch: 130 mm
- Max. Tool Ø (Consecutive): 125 mm
- Max. Tool Ø (Non-Consecutive): 250 mm
- Max. Tool Length: 600–800 mm
- Max. Tool Weight: 20–25 kg
TW – On Ground (Floor positioning)
- Tool Capacity: 60 / 120 / 180 / 210 / 240 pockets
- Positioning: On Ground
- Chain Pitch: 130–160 mm
- Max. Tool Ø (Consecutive): 125–155 mm
- Max. Tool Ø (Non-Consecutive): 250–315 mm
- Max. Tool Length: 600–800 mm
- Max. Tool Weight: 20–35 kg
K – Pick-up Station
Dedicated to the automatic handling of heads and large-size accessories, the K pick-up station enables seamless configuration changes and the management of special tools in unattended cycles. Its structure ensures both protection and accessibility.
- Accessory Capacity: 2 ÷ 5
- Versions: Fixed or Mobile
- Capability: Special tools and oversized components
- Safety: Integrated roller shutter with automatic open/close
Options
Option for Hydrostatic Boring and Milling Machines

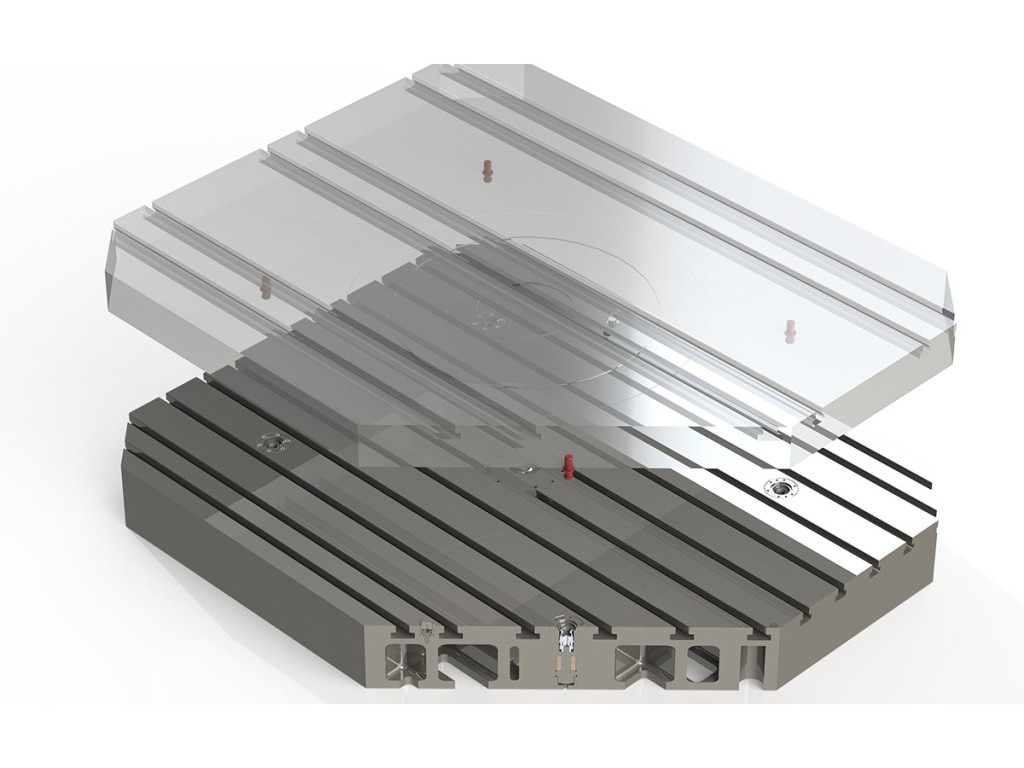

H 0 – Semiautomatic Table Change
The H 0 system drastically reduces setup times by allowing semiautomatic replacement of tables or pallets.
By equipping the main table with four hydraulic clampings and precision centring systems, the operator can swap over-tables rapidly and accurately without full machine shutdown.
This enables significant productivity gains by eliminating dead time between work phases. Multiple over-tables become the new workbench once clamped, ensuring seamless transition and increasing throughput in high-mix environments.

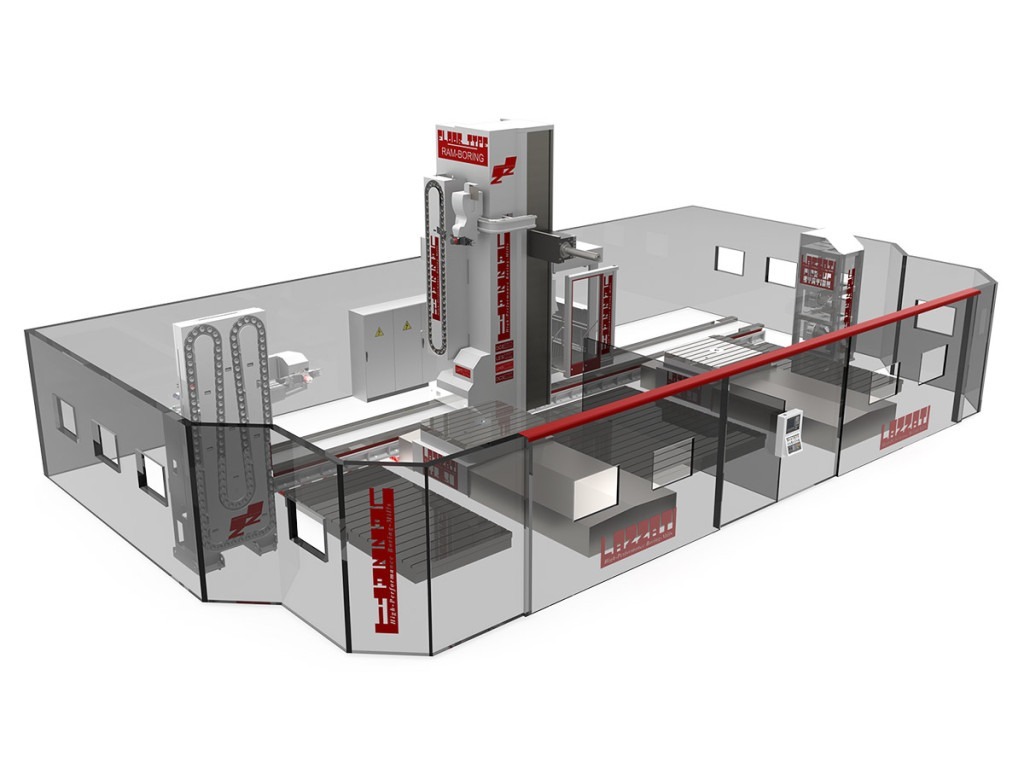

LTS – LAZZATI Twin System
The LAZZATI Twin System (LTS) transforms a single machine into a high-output, semi-automated production cell.
Through dedicated CNC configuration, layout adaptation and accessory integration, the system enables continuous machining without operator intervention.
Loading and unloading operations are handled independently, allowing production to proceed without interruption.
Designed for maximum efficiency, LTS supports reliable 24/7 operation and is ideal for environments with high volume or unattended shift requirements.
G – Protections
LAZZATI places operator safety and machine protection at the core of its engineering philosophy.
Protection systems are designed to meet international safety standards while maintaining full accessibility for operation and maintenance.
Available configurations include perimeter guarding, cabin enclosures with controlled access, chip containment systems and safety interlocks integrated with the machine control.
All protection solutions are engineered to ensure compliance, reduce risk and support a safe working environment without compromising productivity.
L – Coolant Management
Advanced coolant management systems support stable machining conditions, extended tool life and efficient chip evacuation.
LAZZATI machines are equipped with high-pressure coolant delivery as standard at 35 bar, with optional upgrade to 50 bar for demanding applications requiring deep-hole drilling or high-performance cutting.
Filtration systems with paper filters ensure coolant cleanliness and consistent performance throughout extended machining cycles.
Coolant tank capacity and flow rates are configured according to application requirements.
Accessories as Investment Strategy
Accessories are conceived as integral elements of the machine configuration, not as standalone add-ons. The modular approach allows machines to evolve over time, supporting new applications and production requirements. This philosophy aligns with LAZZATI’s concept of Investment Grade Machinery, focused on long-term value retention and adaptability.
Market Perspective
Market research shows that flexibility, reliability and long-term support are decisive factors in machine tool purchasing decisions.
LAZZATI accessories are designed to address all three within a structured and modular configuration strategy.
LAZZATI boring mill accessories are designed to extend machine capability through a modular and structured approach. Accessories are fully integrated with LAZZATI Evo4.0 machines and compatible with hydrostatic architecture, preserving accuracy, rigidity and long-term stability. Modular configurations allow manufacturers to adapt machines to specific production requirements and evolving applications over time.
The accessories range includes tables, heads, stores and functional options developed to support flexibility and operational efficiency. Each category is designed to integrate seamlessly with the machine structure and control architecture. This approach supports coordinated operation and consistent machining performance across different configurations.
As part of an Investment Grade Machinery philosophy, LAZZATI accessories contribute to long-term value retention and adaptability. The Hydrostatic Boring Mill. We BOOST Your Profits.
