Hydrostatic CNC Boring Machines with Moving Ram and Rotary Table
High-power hydrostatic boring for complex components requiring maximum rigidity, extended reach, and lifetime accuracy.
Linea T-Type Ram Boring Evo4.0
Introduction: Ram Mobility Meets Rotary Table
The LAZZATI T-Type Ram Boring Evo4.0 combines the flexibility of a moving ram architecture with the efficiency of a hydrostatic rotary table. It is engineered for heavy-duty precision machining where deep boring, stiffness, and geometric stability are crucial.
Thanks to the LHS – LAZZATI Hydrostatic System, all guideways operate on a pressurized oil film, ensuring zero friction, zero wear, and consistent accuracy over decades.
Technical Specifications and Models
The T-Type Ram Boring Evo4.0 delivers power and hydrostatic precision, enabling deep boring and high-torque operations on components up to 60 tons.
Each model maintains hydrostatic precision on all axes with rotary-table accuracy under full load — delivering constant geometry regardless of cutting forces or thermal variations.
Rotary Tables: from 1,600 × 2,000 mm up to 3,000 × 3,500 mm.
Extended travels and custom configurations on request.
HB 130MT Evo4.0
Hydrostatic Ram Boring Machine Ø130–160 mm, X up to 4,000 mm, Y up to 2,500 mm, Ram Mobile Headstock V + Spindle Travel W up to 1,500 mm, Rotary Table 15 Ton
HB 150MT Evo4.0
Hydrostatic Ram Boring Machine Ø150–160 mm, X up to 5,000 mm, Y up to 3,000 mm, Ram Mobile Headstock V + Spindle Travel W up to 1,700 mm, Rotary Table 25 Ton

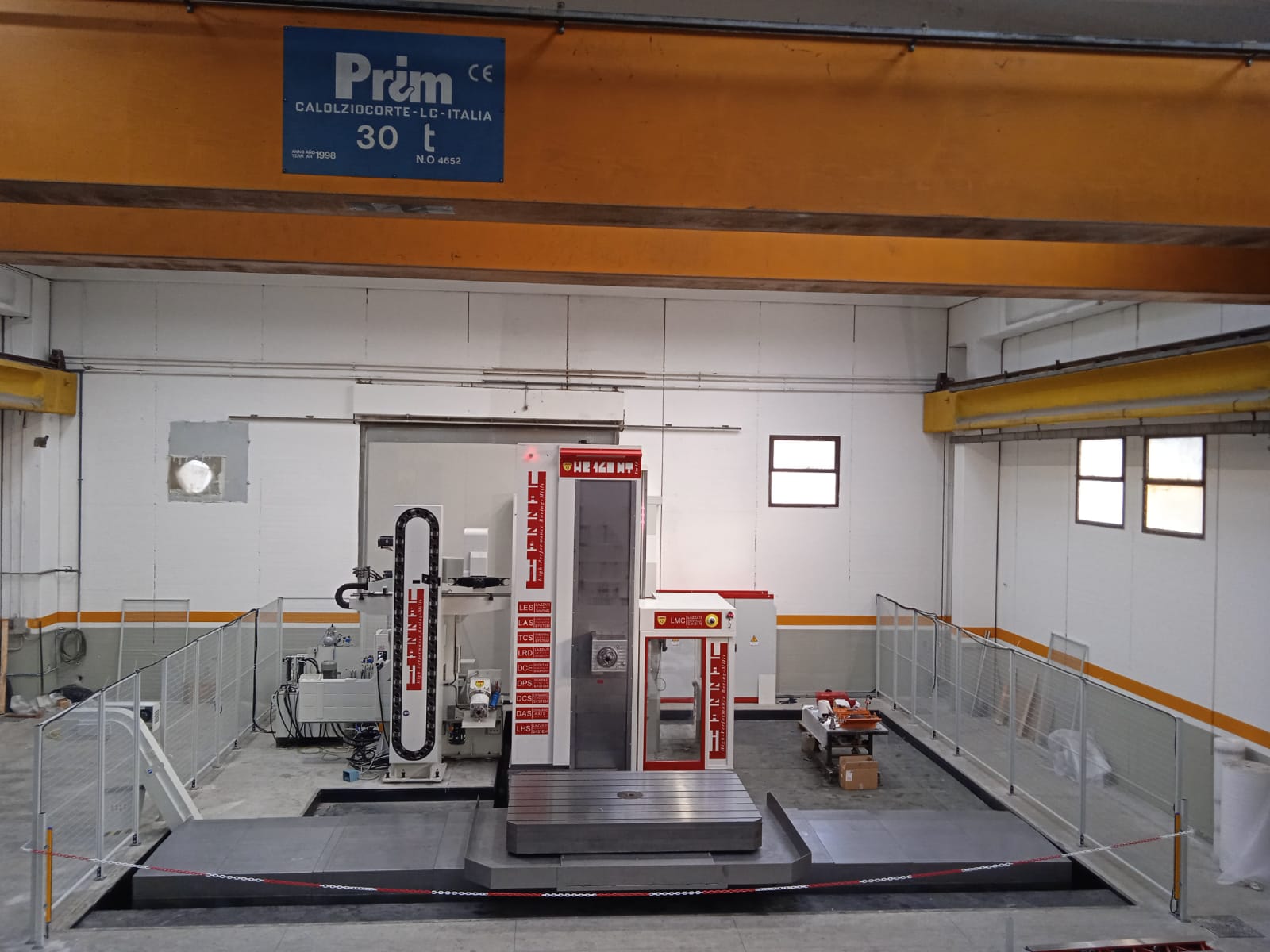

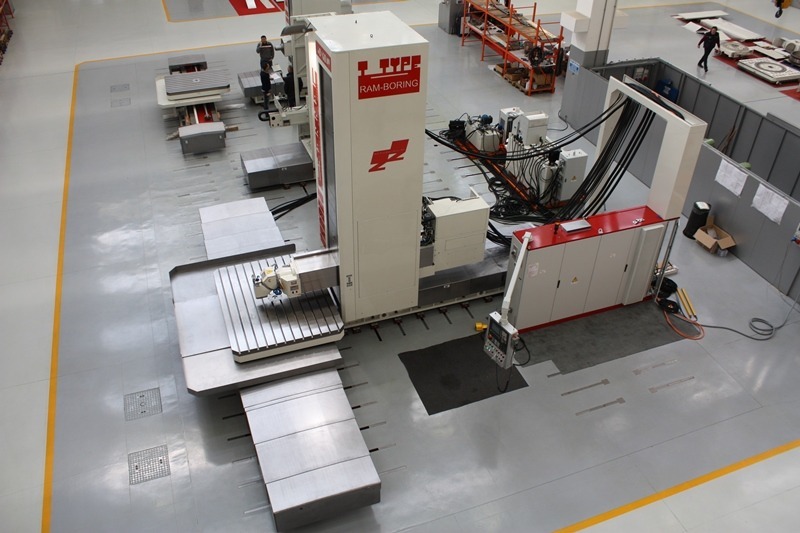

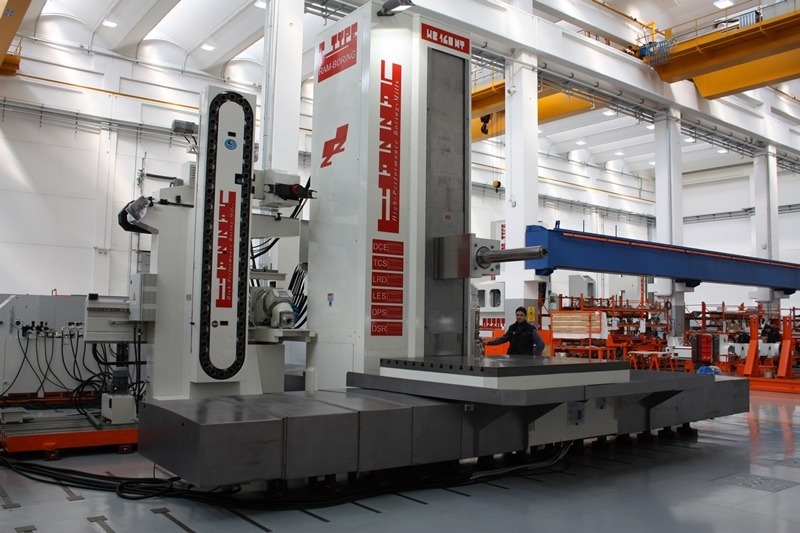

HB 160MT Evo4.0
Hydrostatic Ram Boring Machine Ø150–180 mm, X up to 6,000 mm, Y up to 4,000 mm, Ram Mobile Headstock V + Spindle Travel W up to 2,000 mm, Rotary Table 40 Ton
HB 180MT Evo4.0
Hydrostatic Ram Boring Machine Ø160–180 mm, X up to 7,000 mm, Y up to 4,000 mm, Ram Mobile Headstock V + Spindle Travel W up to 2,000 mm, Rotary Table 60 Ton
Design & Core Systems: Maximum Stiffness for Deep Boring
The T-Type Ram Boring provides a structural advantage by combining the rigidity of the fixed column with the extended reach of the moving ram.

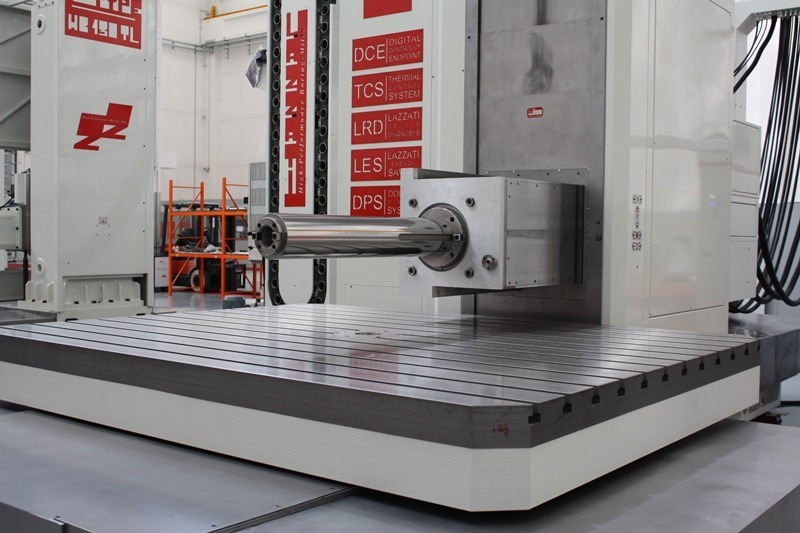

Moving Ram (V-axis)
Hydrostatic Rotary Table
Hydrostatic Slides (X / Y / Z / V axes)
Geometry Verification & Damping
Title
Technical Specifications
Compare the main configurations of the LAZZATI T-Type Evo4.0 range and download the full technical sheet
Ram Mobile Headstock
| HB 130MT Evo4.0 | HB 150MT Evo4.0 | HB 160MT Evo4.0 | HB 180MT Evo4.0 | ||
|---|---|---|---|---|---|
| ø Boring Spindle | mm | 130 - 150 - 160 | 130 - 150 - 160 | 150 - 160 - 180 | 150 - 160 - 180 |
| Spindle Taper | ISO | 50 - Big Plus | 50 - Big Plus | 50 - Big Plus | 50 - Big Plus |
| Spindle Max. Speed | RPM | 4.000 | 4.000 | 4.000 | 4.000 |
| Spindle Motor Max. Torque | Nm | 4.000 | 4.000 | 4.250 | 4.250 |
| Spindle Motor Max. Power | kW | 90 | 90 | 95 | 95 |
| Ram Mobile Headstock Section | mm | 560 x 515 | 560 x 515 | 560 x 515 | 560 x 515 |
Working Area
| HB 130MT Evo4.0 | HB 150MT Evo4.0 | HB 160MT Evo4.0 | HB 180MT Evo4.0 | ||
|---|---|---|---|---|---|
| Spindle Travel - W | mm | 800 / 1.000 | 800 / 1.000 | 1.000 | 1.000 |
| Ram Mobile Headstock - V | mm | 700 | 700 | 1.000 | 1.000 |
| Vertical Travel - Y | mm | 2.000 – 3.000 | 2.000 - 3.000 | 3.000 - 4.000 | 3.000 - 4.000 |
| Table Travel - X | mm | 2.000 - 4.000 | 2.000 - 5.000 | 2.000 - 6.000 | 2.000 - 7.000 |
| Column Travel - Z | mm | 1.200 - 2.700 | 1.200 - 2.700 | 1.500 - 3.000 | 1.500 - 3.000 |
Rotary table
| HB 130MT Evo4.0 | HB 150MT Evo4.0 | HB 160MT Evo4.0 | HB 180MT Evo4.0 | ||
|---|---|---|---|---|---|
| Max Admitted Load | Ton. | 15 | 25 | 40 | 60 |
| Min Surface - B | mm | 1.600 x 2.000 | 1.600 x 2.000 | 1.650 x 2.000 | 2.500 x 2.500 |
| Max Surface - B | mm | 1.800 x 2.400 | 2.000 x 3.000 | 2.500 x 3.000 | 3.000 x 3.500 |
Feeds
| HB 130MT Evo4.0 | HB 150MT Evo4.0 | HB 160MT Evo4.0 | HB 180MT Evo4.0 | ||
|---|---|---|---|---|---|
| Linear - X/Y/Z | mm/1' | 0,001 - 20.000 | 0,001 - 20.000 | 0,001 - 15.000 | 0,001 - 12.000 |
| Rotary - B | RPM | 0,0001 - 3 | 0,0001 - 2 | 0,0001 - 2 | 0,0001 - 1,5 |
All Ram Boring machines integrate LAZZATI’s proprietary systems
LAZZATECH - Core System
All LAZZATI machines integrate the LHS – LAZZATI Hydrostatic System, ensuring zero metal-to-metal contact, no guideway wear and constant accuracy over time. Our proprietary systems — TCS (Thermal Control System), LAS (Active Stabilization System), DCS (Dynamic Compensation System) and LES (Energy Saving System) — optimize energy efficiency and geometric precision. Digital control is provided by LHI 5.0, our intuitive operator interface, and LIA 1.0, the built-in AI assistant supporting predictive setup and diagnostics. We consciously use commercial, non-complex components, easily sourced on the international market, ensuring simpler machine management and minimal downtime.
LHS – LAZZATI Hydrostatic System
TCS – Thermal Control System
L-DAS – LAZZATI Dynamic Axis Setup
DCS – Dynamic Compensation System
LES – Energy Saving System
LHI 5.0 – Human Interface
LIA 1.0 – Intelligent Assistant
LRD – Remote Diagnosis
Strategic Sourcing Advantage
Why Choose Ram Boring: Extended Reach and Stable Rigidity
Full hydrostatic guidance on all axes — zero guideway wear
Moving ram provides extended reach and structural stiffness for deep boring
Rotary table enables multi-face machining in one setup
30+ year operational life with preserved accuracy and geometry
Digital diagnostics and optimized operating costs
Made in Italy — design, manufacturing and inspection in Milan
We BOOST Your Profits
Every LAZZATI T-Type Ram Boring machine is an Investment Grade Machine.
Its hydrostatic design and advanced systems ensure lower operating costs, reduced downtime, and stable productivity over decades.
Lower operating costs compared to conventional boring mills
Multi-face capability reduces setup time and increases per-cycle efficiency
Zero guideway wear means maintained accuracy and fewer adjustments
30+ year operational life with preserved geometry
Minimal unplanned downtime thanks to zero-wear hydrostatic systems
Industries & Applications
Aerospace
Energy
Oil & Gas
Heavy Industry
Defense
LO&M and BlueTech4.0
Protect your investment through LO&M – LAZZATI Operations & Maintenance: preventive maintenance, 24/7 support, certified spare parts, and geometry verification.
Every T-Type Ram Boring Evo4.0 is also compatible with BlueTech4.0 – LAZZATI’s sustainable regeneration program with certified hydrostatic rebuilding and CNC upgrades.
Made in Italy
LAZZATI designs and builds hydrostatic boring and milling machines entirely in Italy. Mechanical craftsmanship, advanced engineering, and reliability since 1939: precision that endures, machine after machine.
LAZZATI guarantees complete customization of its Hydrostatic Boring and Milling Machines
Accessories
LAZZATI offers a full range of accessories designed to enhance efficiency and customization. From automatic tool & heads storage to modular heads, every option extends the flexibility and performance of your LAZZATI machine
Heads
Stores
Options
FAQ
Chiusa
What is a T-Type Ram Boring machine and what makes it different from other configurations?
A T-Type Ram Boring machine is configured with a mobile table (X axis), mobile headstock vertical movement (Y axis), mobile column (Z axis), mobile headstock ram (V axis), and a mobile boring spindle (W axis). This multi-axis architecture enables controlled internal machining with extended reach and precise positioning across the full working envelope.
Compared to T-Type Boring without ram, it enables deeper boring through combined V+W travel up to 2,000 mm. Compared to Floor-Type Ram Boring, it is designed for medium-scale components from 15 to 60 tons.
Unlike systems using linear guides with partial hydrostatic damping, LAZZATI integrates full hydrostatic architecture, ensuring zero-wear motion and stable performance over decades.
T-Type Ram Boring machines integrate LAZZATI hydrostatic technology as standard.
Why choose T-Type Ram Boring instead of T-Type Ram Milling or Floor-Type configurations?
Compared to T-Type Ram Milling, it is dedicated to internal machining rather than external milling operations. Compared to Floor-Type configurations, it is optimized for medium-sized components while maintaining precision, with vertical travel up to 4,000 mm and combined ram and spindle travel up to 2,000 mm.
This configuration aligns machine capability with applications requiring stable and repeatable internal boring.
How does the ram extension support precision boring on complex components?
With table travel up to 7,000 mm and vertical headstock movement up to 4,000 mm, the machine provides controlled access to complex geometries. LAZZATI DCS compensates structural deviations during extension, while the hydrostatic system maintains consistent rigidity across all axes.
How is accuracy maintained during extended ram boring operations?
With component capacities from 15 to 60 tons and vertical travel up to 4,000 mm, the machine maintains stable positioning throughout the working envelope. This enables consistent alignment and repeatability in applications such as aerospace components, defense housings, and compressor casings.
What components are typically machined on T-Type Ram Boring machines?
T-Type Ram Boring machines are used for precision internal machining of medium-scale components across multiple industries. Typical applications include aerospace structural components, defense equipment housings, turbine parts, compressor casings, and oil & gas valve bodies.
Models such as HB 130MT, HB 150MT, HB 160MT, and HB 180MT Evo4.0 cover component capacities from 15 to 60 tons. With boring spindle diameters from Ø130 to Ø180 mm and combined V+W travel up to 2,000 mm, these machines support deep internal machining while maintaining controlled geometry.
Precision, rigidity and reliability define their role in consistent industrial performance.
LAZZATI S.p.A. designs and manufactures hydrostatic T-Type Ram Boring machines with rotary tables for deep boring and multi-face machining operations on large industrial components. The Evo4.0 series combines moving ram architecture with full hydrostatic guidance on all axes (X, Y, Z, V), delivering zero guideway wear and lifetime accuracy retention across decades of continuous operation. All models feature the LHS – LAZZATI Hydrostatic System for exceptional rigidity, TCS thermal control for dimensional stability, L-DAS dynamic axis setup with automatic Power/Normal/Finish modes, DCS dynamic compensation, LES energy saving technology, and advanced digital systems including LHI 5.0 intuitive interface, LIA 1.0 AI assistant for predictive maintenance, and LRD remote diagnosis for 24/7 support. Available in four configurations — HB 130MT, HB 150MT, HB 160MT, HB 180MT — with boring spindles ranging from Ø130–180 mm, torque up to 4,250 Nm, and ram mobile headstock V up to 1,000 mm with spindle travel W up to 1,000 mm. Rotary tables support loads from 15 to 60 tons with optional configurations up to 3,000 × 3,500 mm. Indicative investment range: €1,000,000–€1,800,000, depending on spindle diameter, ram configuration and automation. Ideal for aerospace precision machining, energy sector turbine components, oil & gas pressure vessels, heavy fabrication, and defense applications requiring maximum rigidity, extended reach, multi-face capability in single setup, and consistent geometric accuracy. Zero wear hydrostatic systems ensure reduced total operating costs and minimal unplanned downtime. LAZZATI Investment Grade Machinery — engineered for precision, reliability, and longevity. Made in Italy since 1939.
