Hydrostatic CNC T-Type Boring Machines (Table-Type + Rotary Table)
Engineered for deep axial boring, multi-face machining, and zero-wear longevity on medium-to-large components.
Linea T-Type Boring Evo4.0
Introduction
The LAZZATI T-Type Boring Evo4.0 combines a compact footprint with a rotary table for multi-face operations in a single setup.
Full hydrostatic guidance (LHS) eliminates guideway wear and preserves geometry over decades.
Designed for medium-to-large components that require deep axial boring with constant accuracy and thermal stability.
Technical Specifications and Models
The T-Type Boring Evo4.0 scales from compact Ø130 mm to powerful Ø180 mm spindles, enabling multi-face operations and high-torque boring on components ranging from 15 to 60 tons.
Each model maintains hydrostatic precision on X, Y, Z, B axes with rotary-table accuracy under full load — delivering constant geometry regardless of cutting forces or thermal variations.
Rotary Tables: from 1,600 × 2,000 mm up to 3,000 × 3,500 mm.
Extended travels and custom configurations on request.

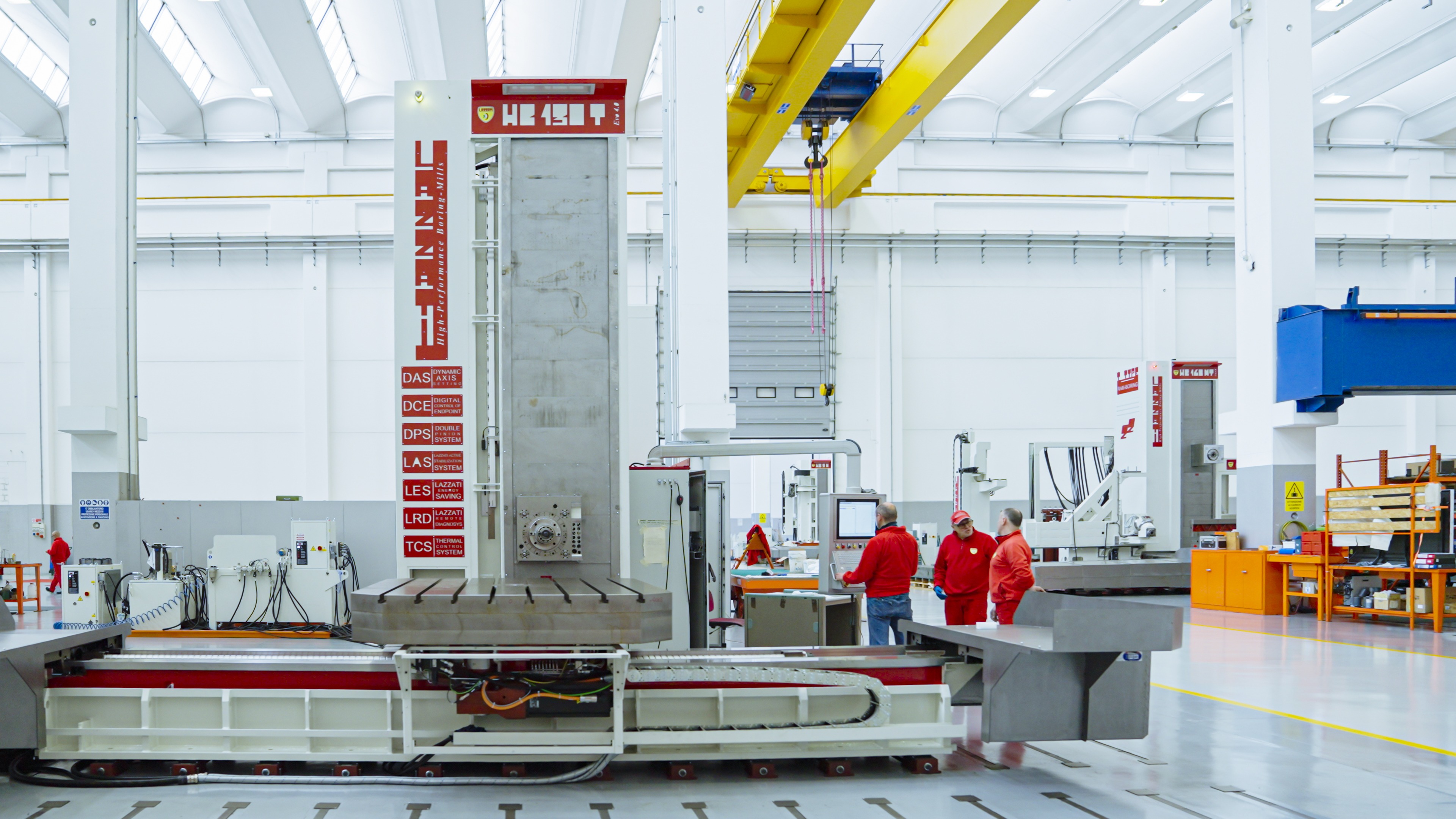

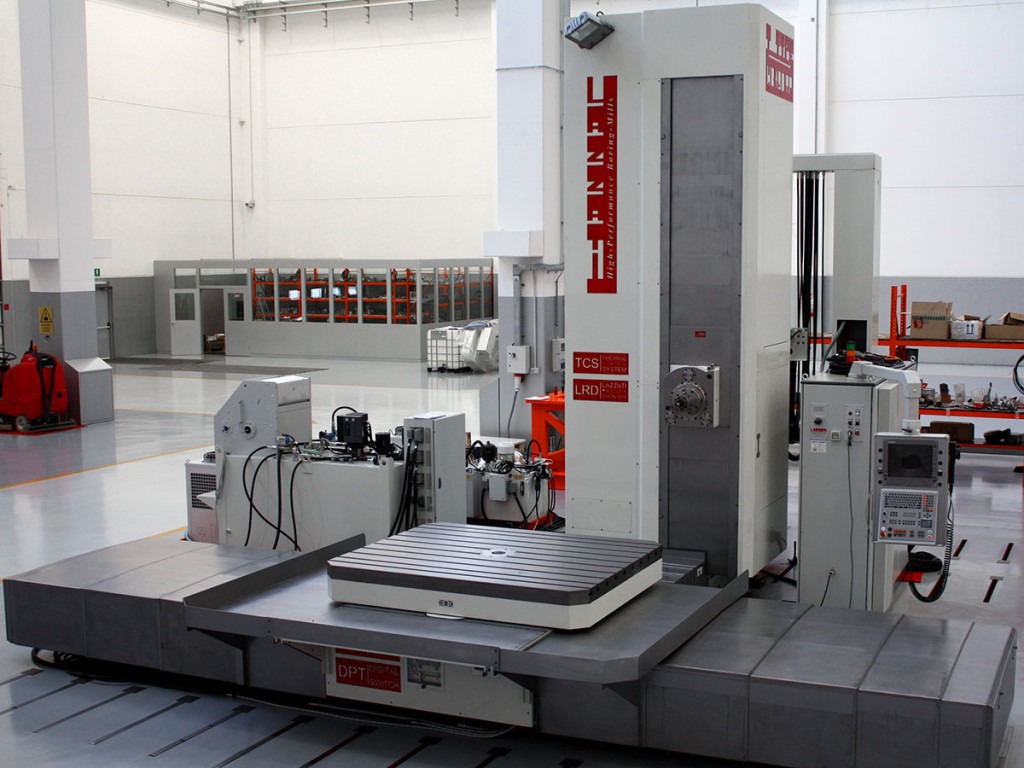

HB 130T Evo4.0
Hydrostatic Boring Machine Ø130–150 mm, X up to 4,000 mm, Y up to 2,500 mm and Rotary Table 15 Ton
HB 130TP Evo4.0
Hydrostatic Boring Machine Ø150 mm, X up to 5,000 mm, Y up to 3,000 mm and Rotary Table 25 Ton

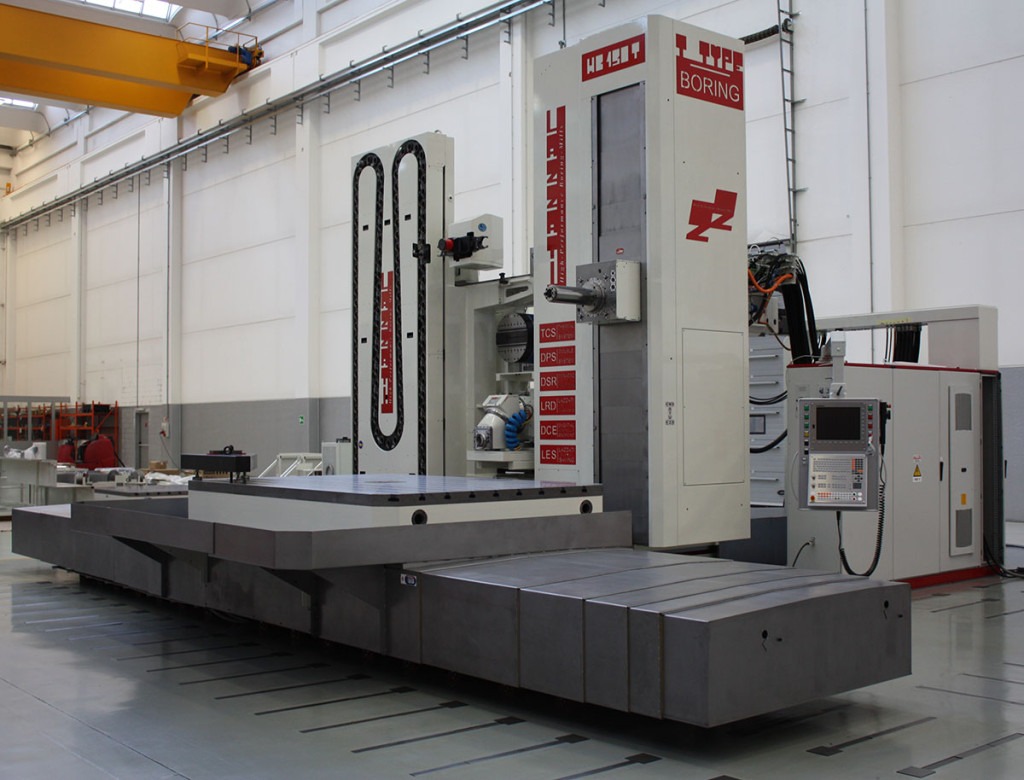

HB 150T Evo4.0
Hydrostatic Boring Machine Ø150 mm, X up to 6,000 mm, Y up to 4,000 mm and Rotary Table 40 Ton

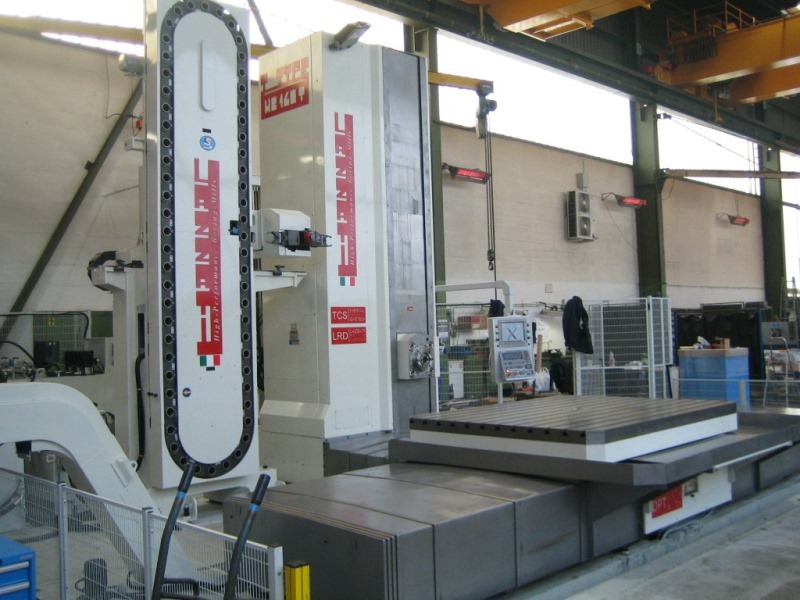

HB 160T Evo4.0
Hydrostatic Boring Machine Ø160 mm, X up to 6,000 mm, Y up to 4,200 mm and Rotary Table 40 Ton
HB 180T Evo4.0
Design & Core Systems: Hydrostatic Excellence
Fixed Extended Ram (515 × 510 mm)
Hydrostatic Rotary Table
Hydrostatic Slides (X / Y / Z axes)
ALC – Automatic Level Check
LAS & OCM
Title
Technical Specifications
Compare the main configurations of the LAZZATI T-Type Evo4.0 range and download the full technical sheet
Headstock
| HB 130T Evo4.0 | HB 130TP Evo4.0 | HB 150T Evo4.0 | HB 160T Evo4.0 | HB 180T Evo4.0 | ||
|---|---|---|---|---|---|---|
| ø Boring Spindle | mm | 130 / 150 | 150 | 150 | 150 / 160 / 180 | 160 / 180 |
| Spindle Taper | ISO | 50 – Big Plus | 50 - Big Plus | 50 – Big Plus | 50 – Big Plus | 50 – Big Plus |
| Spindle Max. Speed | RPM | 5.000 | 5.000 | 5000 | 4.000 | 4.000 |
| Spindle Motor Max. Torque | Nm | 4.000 | 4.000 | 4.000 | 4.250 | 4.250 |
| Spindle Motor Max. Power | kW | 90 | 90 | 90 | 95 | 95 |
| Fix Extended Ram Section | mm | 515 x 510 | 515 x 510 | 515 x 510 | 515 x 510 | 515 x 510 |
Working Area
| HB 130T Evo4.0 | HB 130TP Evo4.0 | HB 150T Evo4.0 | HB 160T Evo4.0 | HB 180T Evo4.0 | ||
|---|---|---|---|---|---|---|
| Spindle Travel – W | mm | 800 - 900 | 900 | 900 | 1.100 | 1.100 |
| Fix Estended Ram | mm | 250 | 250 | 250 | 325 | 325 |
| Vertical Travel - Y | mm | 2.000 – 2.500 | 2.000 – 3.000 | 3.000 – 4000 | 3.000 – 4.200 | 3.000 – 4.200 |
| Table Travel – X | mm | 2.000 – 4.000 | 2.000 – 5.000 | 2.000 – 6.000 | 2.000 – 6.000 | 2.000 – 7.000 |
| Column Travel – Z | mm | 1.500 – 3.000 | 1.500 – 3.000 | 1.500 – 3.000 | 1.500 – 3.000 | 1.500 – 3.000 |
Rotary table
| HB 130T Evo4.0 | HB 130TP Evo4.0 | HB 150T Evo4.0 | HB 160T Evo4.0 | HB 180T Evo4.0 | ||
|---|---|---|---|---|---|---|
| Max. Admitted Load | Ton | 15 | 25 | 40 | 40 | 60 |
| Min. Table Surface - B | mm | 1.600 x 2.000 | 1.600 x 2.000 | 1.650 x 2.000 | 1.650 x 2.000 | 2.500 x 2.500 |
| Max. Table Surface – B | mm | 1.800 x 2.400 | 2.000 x 3.000 | 2.000 x 3.000 | 2.500 x 3.000 | 3.000 x 3.500 |
Feeds
| HB 130T Evo4.0 | HB 130TP Evo4.0 | HB 150T Evo4.0 | HB 160T Evo4.0 | HB 180T Evo4.0 | ||
|---|---|---|---|---|---|---|
| Linear - X/Y/Z | mm/1′ | 0,001 - 20.000 | 0,001 - 20.000 | 0,001 - 15.000 | 0,001 - 15.000 | 0,001 - 12.000 |
| Rotary - B | RPM | 0,0001 - 3 | 0,0001 - 2 | 0,0001 - 2 | 0,0001 - 2 | 0,0001 - 1,5 |
LAZZATECH: Digital Ecosystem for Peak Uptime
All T-Type Boring Evo4.0 machines integrate LAZZATI’s proprietary systems
All LAZZATI machines integrate the LHS – LAZZATI Hydrostatic System, ensuring zero metal-to-metal contact, no guideway wear and constant accuracy over time. Our proprietary systems — TCS (Thermal Control System), LAS (Active Stabilization System), DCS (Dynamic Compensation System) and LES (Energy Saving System) — optimize energy efficiency and geometric precision. Digital control is provided by LHI 5.0, our intuitive operator interface, and LIA 1.0, the built-in AI assistant supporting predictive setup and diagnostics. We consciously use commercial, non-complex components, easily sourced on the international market, ensuring simpler machine management and minimal downtime.
LHS – LAZZATI Hydrostatic System
TCS – Thermal Control System
L-DAS – LAZZATI Dynamic Axis Setup
Includes three automatic modes – Power, Normal, and Finish – and three rotary-table settings – Heavy, Normal, Light – ensuring perfect balance between performance, sensitivity, and protection.
Benefits: constant quality, optimized cycle times, and mechanical protection of axes and table.
LES – Energy Saving System
LHI 5.0 – Human Interface
LIA 1.0 – Intelligent Assistant
LRD – Remote Diagnosis
Strategic Sourcing Advantage
Why Choose T-Type Boring: Zero Wear & Operating Efficiency
Hydrostatics on all axes — standard
Zero guideway wear and constant geometry over time
Rotary table for multi-face machining in one setup — reduces setup time
Digital diagnostics and optimized operating costs
Made in Italy — design, manufacturing and inspection in Milan
We BOOST Your Profits!
The T-Type Boring Evo4.0 is an Investment Grade Machine.
Its hydrostatic design and advanced systems ensure lower operating costs, reduced downtime, and stable productivity over decades.
Lower operating costs compared to conventional boring mills
Multi-face capability reduces setup time and increases per-cycle efficiency
Zero guideway wear means maintained accuracy and fewer adjustments
30+ year operational life with preserved geometry
Minimal unplanned downtime thanks to hydrostatic systems
Engineered to last. Built to perform.
Customization & Automation
Expand your T-Type Boring capabilities with modular options
Automatic Universal Head (1° / 0.001°)
Tool Magazines (up to 240 positions)
Twin Table & Automation Modules
Chip & Coolant Management
Probing & Measurement Packages
Each option integrates seamlessly with LHI 5.0 and LIA 1.0,
maintaining the same reliability and accuracy standards as the base machine.
Industries & Applications
Aerospace
Energy
Oil & Gas
Heavy Industry
General Engineering & Tooling
Protect Your Investment
LO&M
Keep long-term productivity and accuracy retention with LAZZATI LO&M:
Preventive maintenance programs
scheduled service for optimal performance
24/7 technical support
immediate assistance when needed
Original certified spare parts
guaranteed quality and compatibility
Periodic accuracy verification
ensure compliance and performance
Made in Italy
LAZZATI designs and builds hydrostatic boring and milling machines entirely in Italy.
Mechanical craftsmanship, advanced engineering, and reliability since 1939: precision that endures, machine after machine.
LAZZATI guarantees complete customization of its Hydrostatic Boring and Milling Machines
Accessories
LAZZATI offers a full range of accessories designed to enhance efficiency and customization. From automatic tool & heads storage to modular heads, every option extends the flexibility and performance of your LAZZATI machine
Heads
Stores
Options
FAQ
Chiusa
What is a T-Type Boring machine and what makes it different from other configurations?
Why choose T-Type Boring instead of Floor-Type or other T-Type configurations?
How does the fixed ram improve boring stability?
How does table rotation support multi-face boring?
What components are typically machined on T-Type Boring machines?
T-Type Boring machines are typically used for valve bodies with multiple bores, gearbox housings, manifolds, fluid control components, structural parts with bore relationships, custom machinery housings, and machine tool components. They are suitable for materials such as steel, stainless steel, cast iron, and aluminium. Available LAZZATI T-Type Boring models include HB 130T, HB 130TP, HB 150T, HB 160T, HB 180T. The configuration is commonly used in general engineering, oil and gas, energy-related components, and defense manufacturing. Precision, rigidity and reliability define its role as a boring-focused solution.
LAZZATI S.p.A. designs and manufactures hydrostatic T-Type Boring machines with rotary tables for multi-face machining operations on medium-to-large industrial components. The Evo4.0 series combines fixed extended ram architecture with full hydrostatic guidance on all axes (X, Y, Z, W), delivering zero guideway wear and lifetime accuracy retention across decades of continuous operation. All models feature the LHS – LAZZATI Hydrostatic System for exceptional rigidity, TCS thermal control for dimensional stability, L-DAS dynamic axis setup with automatic Power/Normal/Finish modes, LES energy saving technology, and advanced digital systems including LHI 5.0 intuitive interface, LIA 1.0 AI assistant for predictive maintenance, and LRD remote diagnosis for 24/7 support. Available in five configurations — HB 130T, HB 130TP, HB 150T, HB 160T, HB 180T — with boring spindles ranging from Ø130–180 mm, torque up to 4,250 Nm, and travels up to X 7,000 mm, Y 4,200 mm, Z 3,000 mm. Rotary tables support loads from 15 to 60 tons with optional configurations up to 3,000 × 3,500 mm. Indicative investment range: €700,000–€1,300,000, depending on spindle diameter, travel configuration and automation. Ideal for aerospace precision machining, energy sector turbine components, oil & gas pressure vessels, and heavy fabrication applications requiring maximum rigidity, multi-face capability in single setup, and consistent geometric accuracy. Zero wear hydrostatic systems ensure reduced total operating costs and minimal unplanned downtime. LAZZATI Investment Grade Machinery — engineered for precision, reliability, and longevity. Made in Italy since 1939
