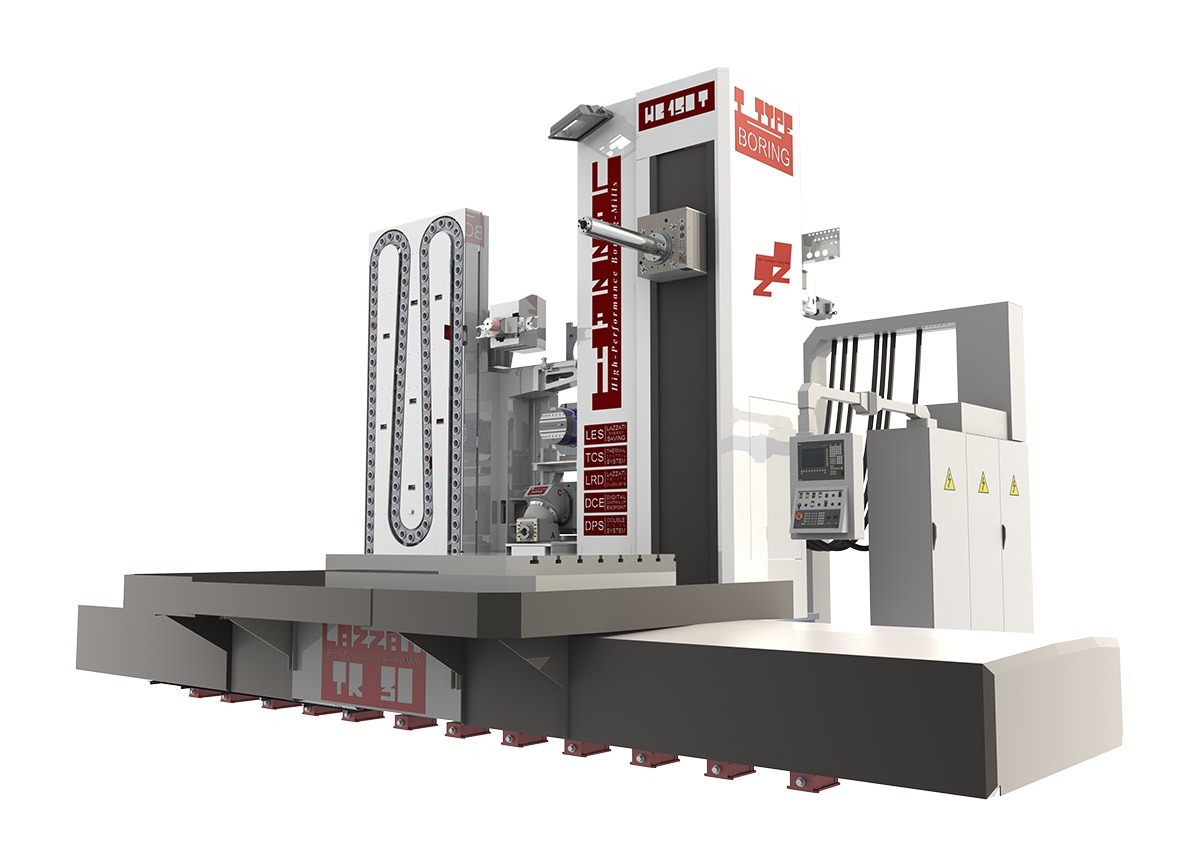

T-Type Boring Evo4.0

Boring Evo4.0

Engineered for deep axial boring, multi-face machining, and zero-wear longevity on medium-to-large components.

T-Type Milling Evo4.0

Milling Evo4.0

Hydrostatic milling with fixed ram architecture, universal head and rotary table capability for high-performance on large components

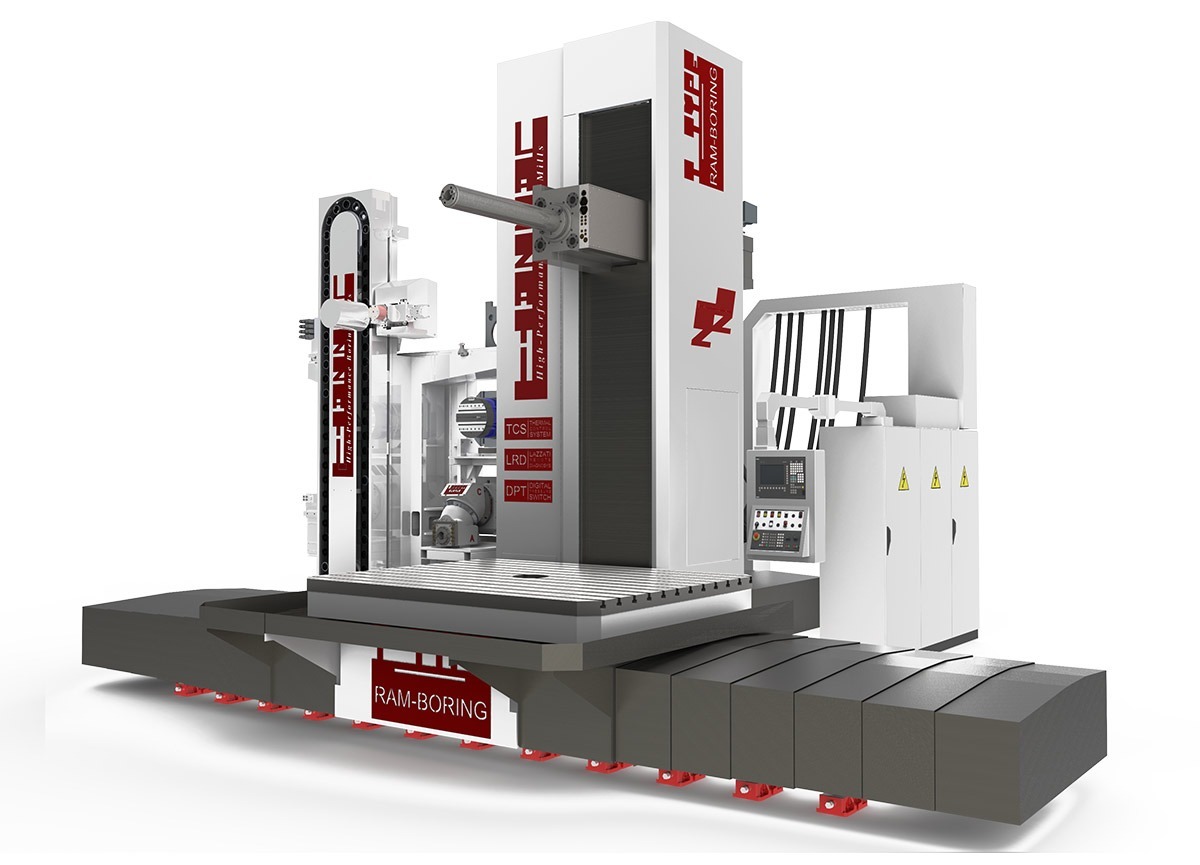

T-Type Ram Boring Evo4.0

Ram Boring Evo4.0

High-power hydrostatic boring for complex components requiring maximum rigidity, extended reach, and lifetime accuracy.

T-Type Ram Milling Evo4.0

Ram Milling Evo4.0

Hydrostatic Planer Type architecture with moving ram, universal head and rotary table, engineered for rigidity, reach and lifetime accuracy.

Accessories

Accessories

Explore how our accessories can improve your operations and increase your productivity.

LAZZATI BlueTech4.0

LAZZATI BlueTech4.0

Hydrostatic Regeneration. Digital Upgrade. Extended Lifetime Accuracy.

Short Delivery

Short Delivery

Select Evo4.0 models available ready-to-ship. Full LAZZATECH integration included.

Aerospace

Precision machining of structural components, fixtures, large tooling and landing-gear elements requiring accuracy retention during long strokes.

Energy

High structural rigidity and thermal stability for turbine housings, rotors, casings, wind energy components, nuclear applications and power generation systems.

Oil & Gas

Deep boring, high-load machining and long-component processing for valves, manifolds, BOP, casings and forged pressure-equipment elements.

Heavy Industry

Machining of large welded structures, shipbuilding components, railway frames, earthmoving and construction equipment, mining machinery and heavy mechanical assemblies.

Defense

Accuracy and stability for armored structures, carriers, defense-vehicle components and critical assemblies.

General Engineering & Tooling

Mould & die manufacturing, automotive tooling, subcontracting, general machining and fine-tolerance precision work.

  1. Home
  2. Project
  3. LAZZATI Travelling Column Boring Mill HB 2M BlueTech4.0
LAZZATI Travelling Column Boring Mill HB 2M BlueTech4.0

Availability: SOLD OUT

Condition: LAZZATI BlueTech4.0 Certified 2026

Main Technical Specifications

  • Automatic Universal Head 1° x 1°
  • ISO50 – Big Plus
  • RPM 3.000 – 1.100Nm – 46kW
  • X=8.000mm
  • Y=2.300mm
  • Z(Ram)=1.200mm
  • CNC Heidenhain 640
  • Coolant 35bar internal/external CNC managed
  • Industry 4.0 & 5.0 Ready
  • 1 Year Warranty

Included Options:

  • TC 60 – Automatic Tool Changer 60tools
  • Floor Plates mm. 4.000×2.000
  • TR 40 B=2.000×2.500 W=2.000
  • Coolant Tank 1.200Lt

Available Options on Request:

  • OSP – Workpiece Probe Radio
  • O SR – Tool Presence Probe

The LAZZATI HB 2M BlueTech4.0 is a regenerated hydrostatic travelling column boring and milling machine developed for heavy-duty precision machining applications requiring rigidity, stability and reliable long-term performance. Available within the LAZZATI BlueTech4.0 program, the machine combines regenerative innovation, technological upgrade and factory validation while maintaining the hydrostatic engineering standards of the LAZZATI range.
