NEW LAZZATI HB 130T EVO 4.0!
Beyond Traditional Machining Myths: High-Dynamic T-Type Hydrostatic Architecture for Flexible Production

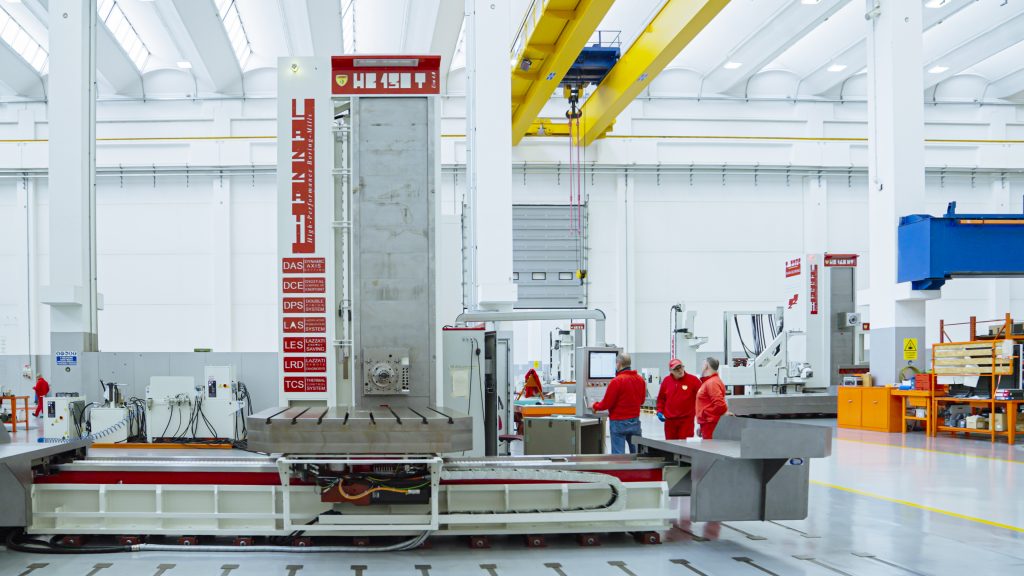

New LAZZATI HB 130T EVO 4.0. LAZZATI High Performance Boring-Mills is pleased to present the new CNC heavy horizontal boring mill HB 130T EVO 4.0.
High dynamic, rapids up to 20m/1′, acceleration of 1m/s2, high working feeds, featured with LAZZATI LHS hydrostatic system , complete set of accessories, constant thermostabilization of the structures, make this innovative machine a complete system, capable of adaptation to any kind of processing for the removal of chips.
The HB 130T EVO is equipped with:
- Boring spindle of 130÷150mm diameter,
- 4.000RPM and power equal to 90Kw.
- ISO 50 Big Plus Ready
- The longitudinal travel of the spindle is 900mm
- The cross travel of the rotary table is 2.000 up to 5.000mm
- The vertical head travel is 2.000mm up to 3.000mm
- The longitudinal travel of the column is 1.500mm up to 3.000mm
- The rotary travelling table has a maximum load capacity of 15 up to 25 tons
- Table plates dimension up to 2.000 x 3.000mm.
- The machine is equipped by standard with the LHI 5.0 – LAZZATI Human Interface and is Industry 4.0/5.0 ready
- It is available with Heidenhain CNC. on request available Siemens, Fanuc and Fagor.
