Milling

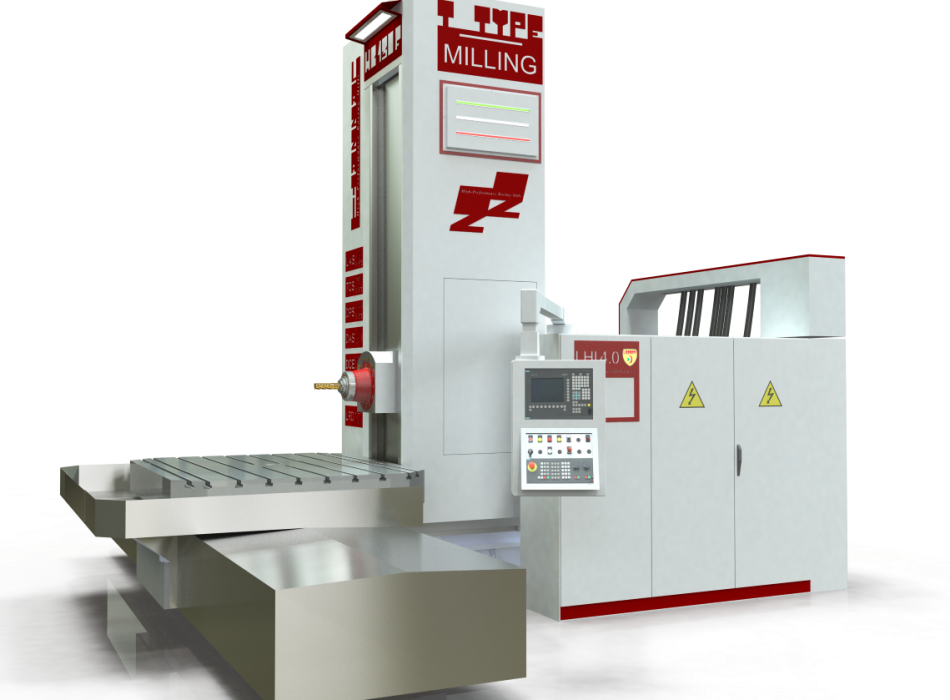

Hydrostatic Milling Machines with “T” Moving Column Fix RAM + Automatic Universal Head Rotary Table 15 – 25Ton
Automatic Universal Head	2×360°- 2×360.000°
Max. Spindle Motor Power	90KW
Longitunal Ram Travel W	Fisso 500 mm.
Head Vertical Head – Y	1.600 – 2.100 – 2.600 mm.
Table Cross Travel – X	2.000 – 3.000 – 4.000 mm.
Max. Admitted Table Load – B	15 – 25 Ton.

Hydrostatic Milling Machines with “T” Moving Column Fixed RAM + Fixed Spindle High Torque and High Speed Rotary Table 15 – 25Ton
Horizontal Fixed Spindle	6.000 RPM
Max. Spindle Motor Power	90KW
Longitudinal Ram Travel W	Fix 350 mm.
Head Vertical Travel – Y	1.500 – 2.000 – 2.500 mm.
Table Cross Travel – X	2.000 – 3.000 – 4.000 mm.
Max Admitted Table Load – B	15 -25 Ton.
