Prompt Delivery
DELIVERY AVAILABLE: 6 MONTHS FROM ORDER

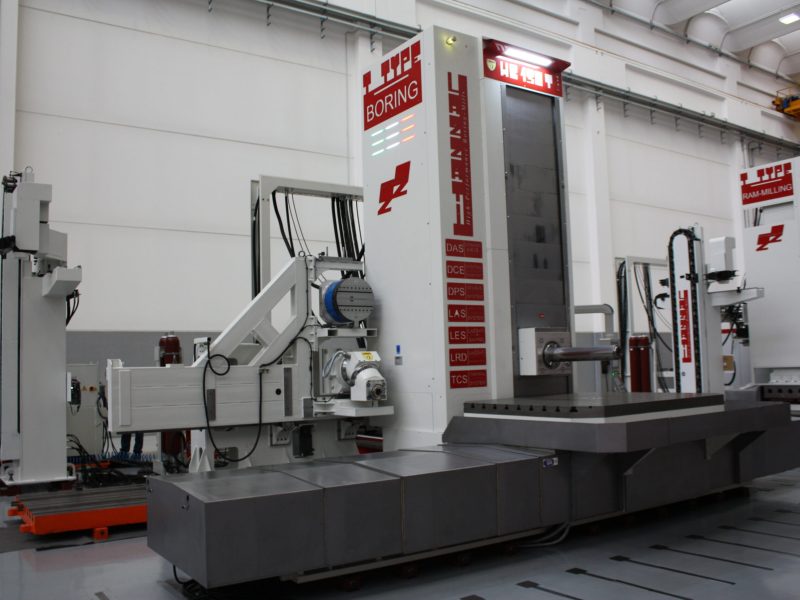

Hydrostatic Boring Machines Spindle Ø150mm and Rotary Table
Ø Boring Spindle150 mm.
Ø Spindle Motor Max Power150 mm.
Boring Spindle Travel – W900 mm.
Head Vertical Travel – Y2.000 ÷ 3.500 mm.
Table Cross Travel – X3.000 ÷ 6.000 mm.
Max. Admitted Table Load  – B40 Ton.
DELIVERY AVAILABLE: 6 MONTHS FROM ORDER

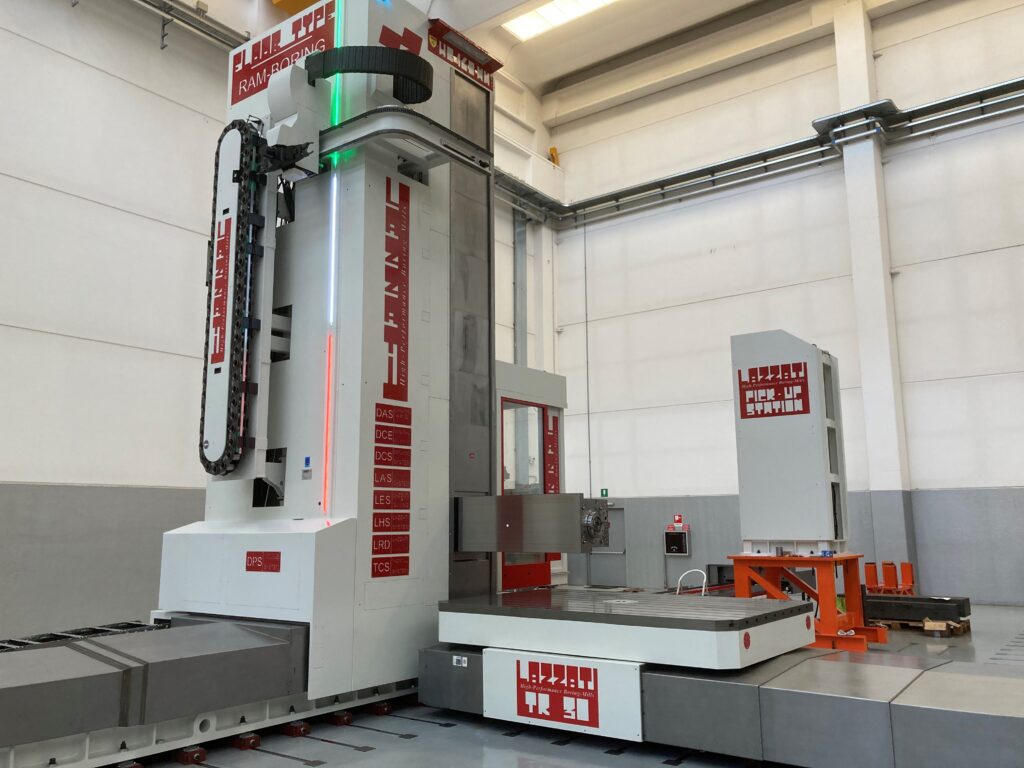

Hydrostatic Boring Milling Machine
with Ram + Boring Spindle Ø160-180 e Y≤5.000
Ø Boring Spindle160 – 180mm.
Max. Motor Spindle Power80 kW
Spindle Travel – W1.200 mm.
Long. RAM Travel – Z1.600 mm.
Vertical Head Travel – Y3.000 ÷ 5.000 mm.
Cross Column Travel – X6.000+N°x1.000mm.
DELIVERY AVAILABLE: 6 MONTHS FROM ORDER
Hydrostatic Boring Machines Spindle Ø130-150mm and Rotary Table 15Ton
Ø Boring Spindle

130 o 150 mm.

Max. Motor Spindle Power 70 kW
Spindle Travel – W 900 mm.
Vertical Head Travel – Y 2.000 ÷ 3.000 mm.
Table Cross Travel – X 2.000 ÷ 4.500 mm.
Max. Admitted Table Load – B 15 Ton.
DELIVERY AVAILABLE: 6 MONTHS FROM ORDER
Hydrostatic Boring Milling Machine
with Ram + Automatic Universal Head and Y≤4.000mm.
Automatic Universal Head 2 x 360°
Max. Motor Spindle Power 70 kW
Max. Spindle Rotation Speed 5.000 RPM
Long. RAM Travel – Z 1.600 mm.
Vertical Head Travel – Y 2.000 ÷ 4.000 mm.
Cross Column Travel – X 4.000 + N° x 1.000
DELIVERY AVAILABLE: 6 MONTHS FROM ORDER
Milling Boring Fresa Alesatrice LAZZATI Linea T-Type Milling HB 2TF
Hydrostatic Milling Machines with “T” Moving Column
Fixed RAM + Automatic Universal Head
Rotary Table 15 – 40Ton
Automatic Universal Head

2×360° – 2×360.000°

Max. Motor Spindle Power 70 kW
RAM Longitudinal travel – W Fisso 500 mm.
Vertical Head Travel – Y 2.100 ÷ 3.100 mm.
Table Cross Travel – X 2.000 ÷ 6.000 mm.
Max. Admitted Table Load – B 15 – 40 Ton.
