New Video LAZZATI HB 160MM Evo4.0 on You Tube Channel
You Tube: https://youtu.be/04_gLCqY3XY

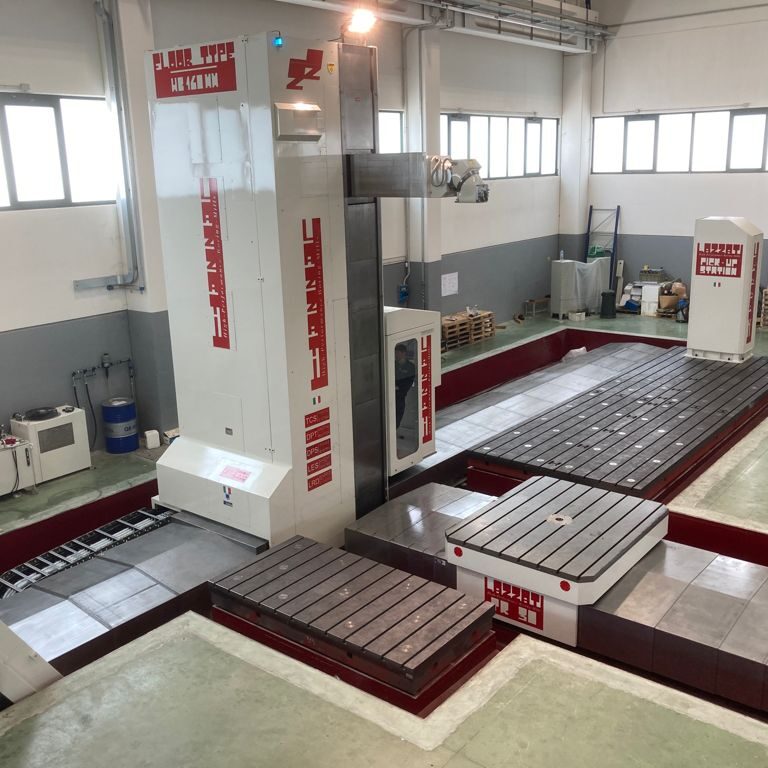

LAZZATI High Performance Boring-Mills is pleased to present the new CNC heavy floor type horizontal boring mill HB 160MM Evo 4.0. The LAZZATI LHS hydrostatic lubrication on all axes mix the rigidity of the box guideways to the absolute precision and high dynamic of the most recent machines.

The LAZZATI DCS-R Hydro-Mechanical Dynamic Compensation for Ram, it is granted the absolute constance of precision within 15µ on the full Z travel. The system LAZZATI DCS-M Hydro-Mechanical Dynamic Compensation for Column grants the volumetric precision within 15µ on the working area.

The LAZZATI TCS Evo Boring constant thermal control of the boring spindle and structures, the HB 160MM Evo 4.0 gurantee the absolute constance of precision in every ambient condition.
With the system LAZZATI DPS-X double pinion with backlash recovery and the system LAZZATI LAS active stabilization of machine axes, the amchine obtains rigidity value never gained, this guarantee a great increment of tool life and an incredible finishing surface.

The main technical specification of the HB 160MM EVO 4.0 are:
• Live Boring Spindle Ø160 or 180mm ISO 50 Big Plus
• Max. Spindle Speed 4.000RPM
• Max. Power 80kW
• Max. Spindle Torque 4.000Nm
• Travel Axis X(Moving Column)=4.000 ÷ 40.000mm
• Travel Axis Y(Headstock)=3.000 ÷ 5.000mm
• Travel Axis Z(Ram)=1.600mm
• Travel Axis W(Spindle)=1.100mm
• Total Travel Z+W=2.700mm
• Ram Section=560 x 515mm
• High Pressure Coolant Internal/External 50Bar CNC managed
• The machine is equipped with the most modern INDUSTRY 4.0 technology.
• Equipped as standard with Heidenhain CNC. • On request CNC Siemens, Fanuc and Fagor
• Hydrostatic Rotary-Travelling Tables with max admitted load 15 ÷ 120Ton
• Automatic Universal Head index 1°x1° o 0,001°x0,001°
• Pick-up Station for Automatic Head Change
• Automatic Tool Changer up to 240tools
• A complete range of options and accessories for a complete custom configuration.

HB 160MM Evo 4.0, an INNOVATIVE and COMPLETE product able to adapt to any kind of processing for the chip removal.
