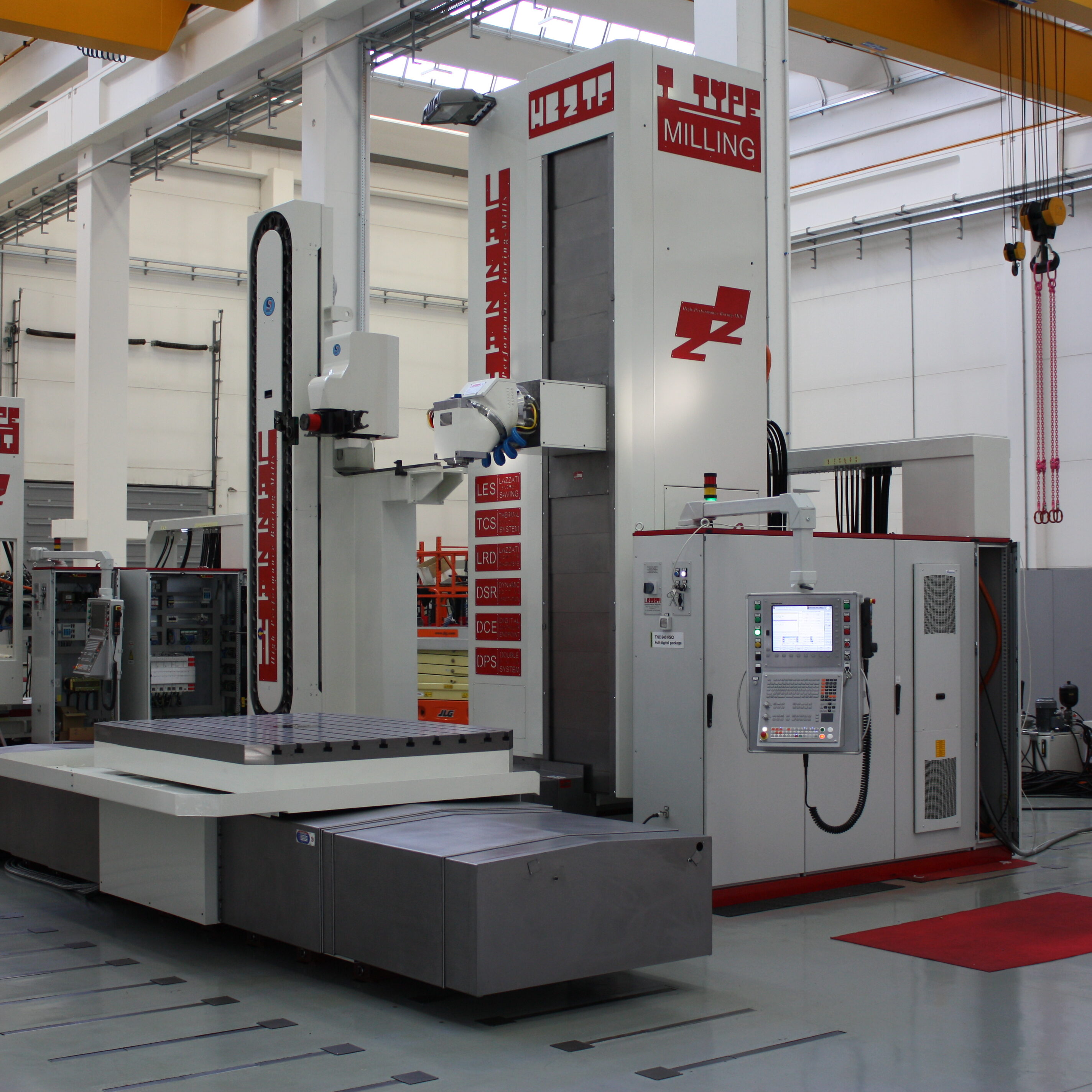

Table Type Milling Boring Machine LAZZATI Linea T-Type Milling HB 2TF

LAZZATI – High Performance Boring Mills is happy to announce the new Table Type Milling Boring Machine of the Linea T-Type. The machine born with a Fixed extended Ram which let the built in installed A UA 360 – Automatic Universal Head 1° x 1° to overcome the table center both in vertical and horizontal position. The very rigid and powerful Lazzati universal head let 4.500RPM with 75kW power and 3.220Nm torque which together with the high pressure coolant CNC controlled 35 BAR internal/external is giving to the HB 2TF the highest flexibility for every kind of machining process. A LAZZATI table is positioned in front of machine with possibility to choose between 15 or 30 Ton of admitted load for a wide range of machining applications. All the HB 2TF axes are equipped  with the LHS-T LAZZATI Hydrostatic System for Table Type machines which permit the highest power, precision and rigidity.

Travels for the machine are:
Vertical Headstock Y= 2.100 – 2.600 – 3.100 mm
Column Longitudinal Z= 1.500 – 1.800 – 2.300 mm
Rotary Table Cross Movement X= 3.000 – 4.000 – 5.000 – 6.000 mm
Table Surface B= 1.600 x 2.000 ÷ 2.000 x 3.000 mm
Rotary Table Max. Admitted Load 15 – 30 Ton

Available Options:
TW 60/120: Tool Changer for 60 or 120 tools for both horizontal and vertical change
J T: Single or Double chip conveyor positioned along the X Axis.
O SP: Work Piece Probe Radio Controlled

Available CNC:
C1: CNC Heidenhain iTNC640-HSCI
C3: CNC Fagor 8065
C4: CNC Siemens 840D Solutionline Operate
C1: CNC Fanuc 31iB
