Ram Milling

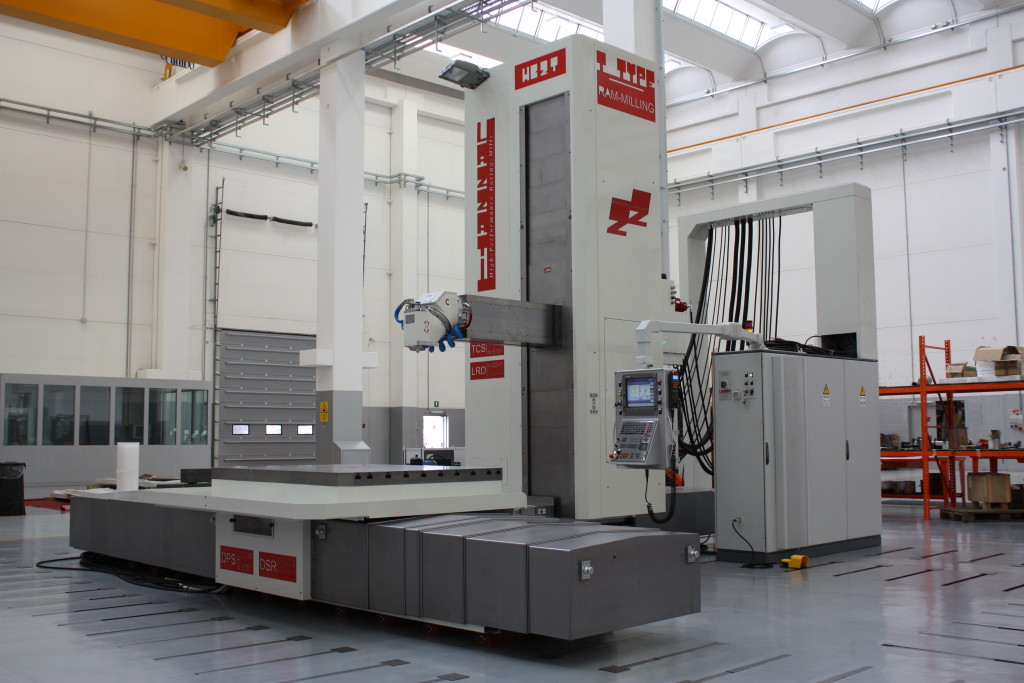

Hydrostatic T-Type Milling Borer
with Fix RAM + Automatic Universal Head and Rotary Table 15-30Ton.
Automatic Universal Head

2×360° – 2×360.000°

Max. Power Spindle Motor 70 kW
Longitudinal RAM Travel – W Fix 500 mm.
Headstock Vertical Head – Y 2.100 ÷ 3.100 mm.
Table Cross Travel – X 2.000 ÷ 6.000 mm.
Max. Admitted Table Load – B 15 – 30 Ton.
Hydrostatic T-Type Milling Borer
with RAM + Automatic Universal Head and Rotary Table 15-30Ton.
Automatic Universal Head

2 x 360°

Max. Power Spindle Motor 70 kW
Longitudinal RAM Travel – W 1.250 mm.
Headstock Vertical Travel – Y 2.100 ÷ 3.100 mm.
Table Cross Travel – X 2.000 ÷ 6.000 mm.
Max Admitted Table Load – B 15 – 30 Ton.
